MX49008NQ1
ActiveJAE Electronics

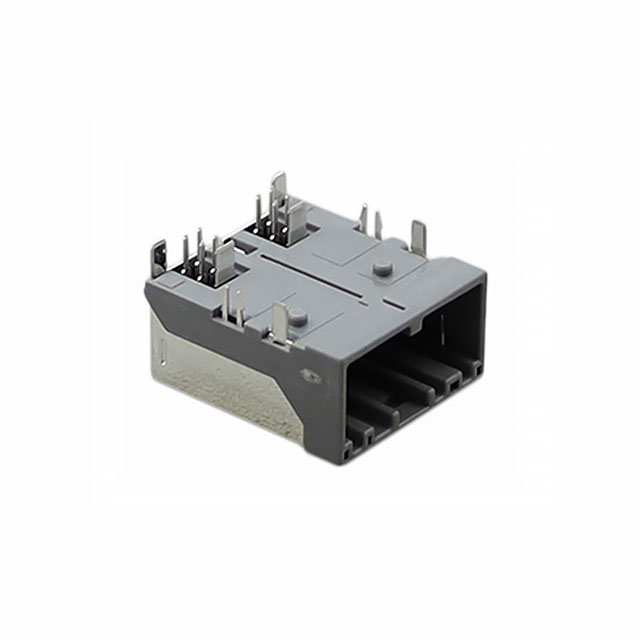

CONN PIN HEADER 8 POS R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MX49008NQ1
ActiveJAE Electronics
CONN PIN HEADER 8 POS R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MX49008NQ1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Brass |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Shielded, Board Guide |
| Insulation Color | Gray |
| Insulation Height | 0.492 in |
| Insulation Height | 12.5 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
