AZ46019

Obsolete

Panasonic Industrial Automation Sales

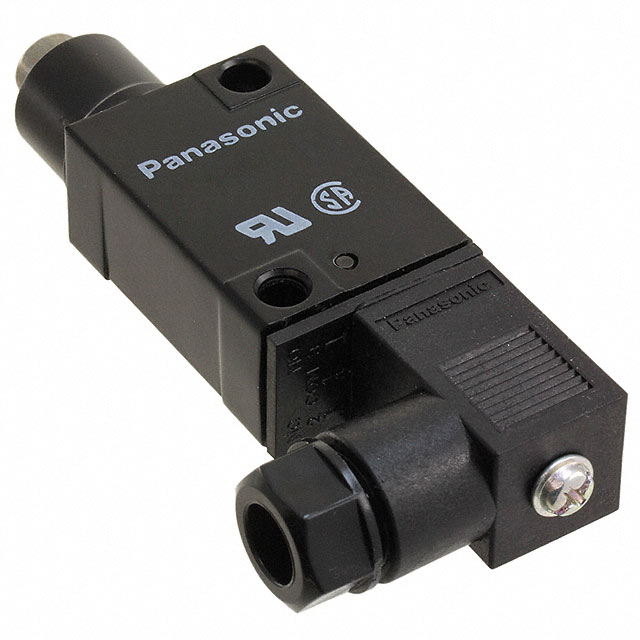

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	AZ46019

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.15 mm
Differential Travel	0.006 in
Electrical Life	300000 Cycles
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	700 gf
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Overtravel	4 mm
Overtravel	0.158 in
Pretravel	0.04 in
Pretravel	1 mm
Release Force	70 gf
Switch Function	On-Mom
Termination Style	Plug In
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Differential Travel	Differential Travel	Overtravel	Overtravel	Ingress Protection	Pretravel	Pretravel	Mechanical Life	Circuit	Switch Function	Operating Force	Termination Style	Actuator Type	Release Force	Electrical Life
Panasonic Industrial Automation Sales AZ46019	-20 C	60 °C	125 V	30 V	5 A	Chassis Mount	0.15 mm	0.006 in	4 mm	0.158 in	IP64 - Dust Tight Water Resistant	0.04 in	1 mm	10000000 Cycles	SPDT	On-Mom	700 gf	Plug In	Round (Pin Plunger)	70 gf	300000 Cycles
