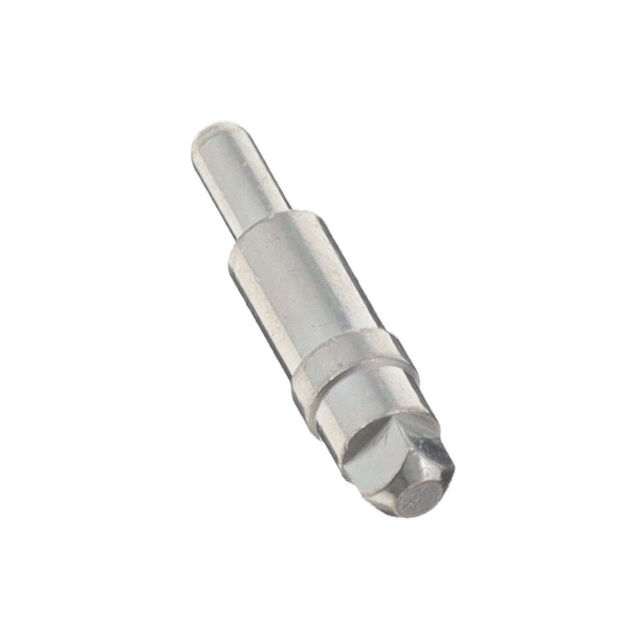

8237-0-05-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN
Deep-Dive with AI
Search across all available documentation for this part.
8237-0-05-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8237-0-05-80-00-00-03-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter | 2.79 mm |
| Flange Diameter [diameter] | 0.11 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 3.89 mm |
| Length - Above Flange [x] | 0.153 in |
| Length - Below Flange [x] | 1.6 mm |
| Length - Below Flange [x] | 0.063 in |
| Length - Overall [x] | 0.472 in |
| Length - Overall [x] | 11.99 mm |
| Mounting Hole Diameter [diameter] | 0.092 in |
| Mounting Hole Diameter [diameter] | 2.34 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.52 mm |
| Pin Size - Above Flange [diameter] | 0.06 in |
| Pin Size - Below Flange [diameter] | 2.31 mm |
| Pin Size - Below Flange [diameter] | 0.091 in |
| Terminal Style | Flanged |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.07 | |
| 10 | $ 0.90 | |||
| 100 | $ 0.81 | |||
| 1000 | $ 0.59 | |||
| 5000 | $ 0.52 | |||
| 10000 | $ 0.49 | |||
Description
General part information
8237-0 Series
PC Pin Terminal Connector Through Hole Tin 0.060" (1.52mm) Dia
