MB2185SS1G06

Obsolete

NKK Switches

SWITCH PUSHBUTTON 4PDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

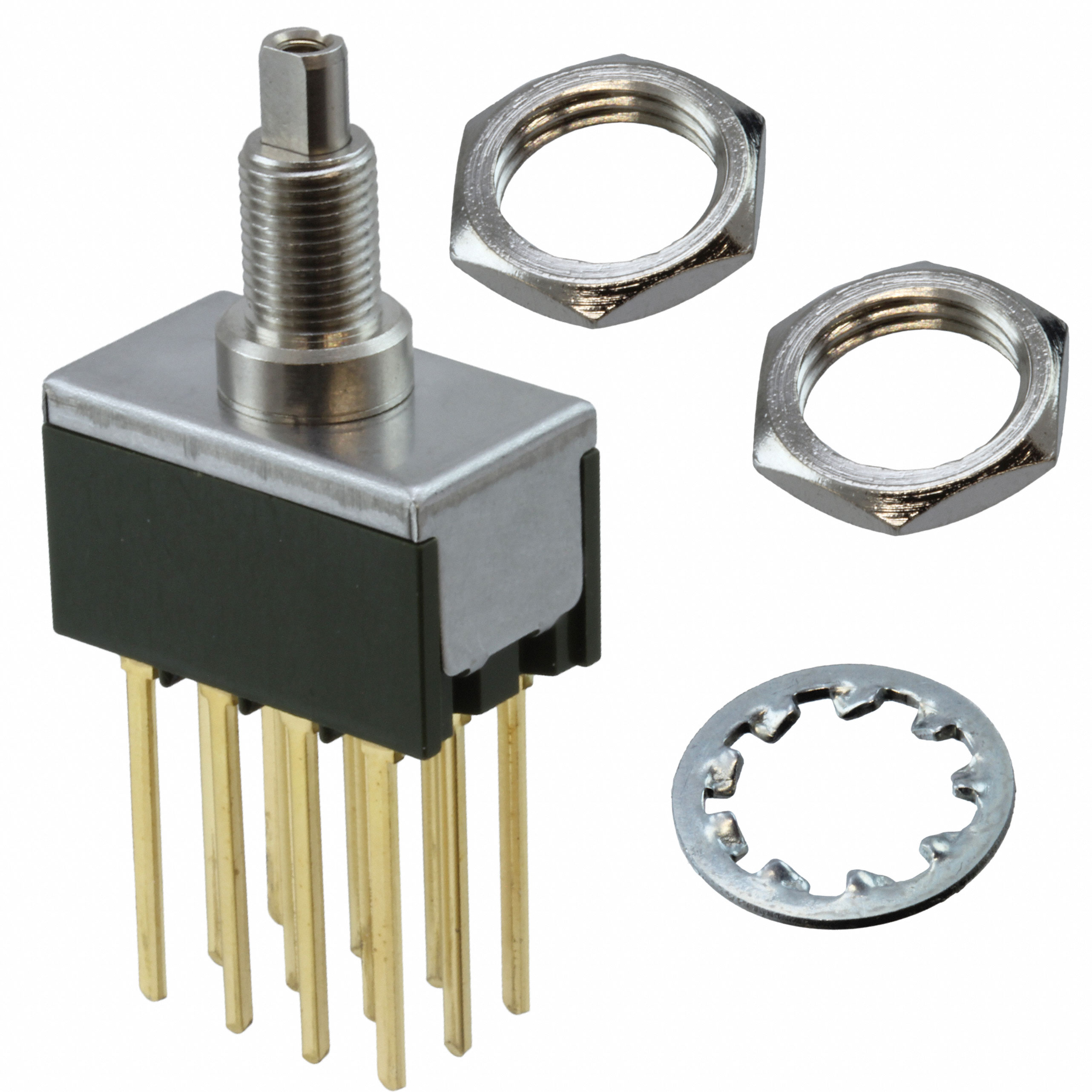

MB2185SS1G06

Obsolete

NKK Switches

SWITCH PUSHBUTTON 4PDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2185SS1G06

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	4PDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Wire Wrap
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

MB2185S Series

Part	Panel Cutout Dimensions [diameter]	Mounting Type	Voltage Rating - AC	Electrical Life	Mechanical Life	Actuator Marking	Features	Actuator Type	Voltage Rating - DC	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Type	Circuit	Switch Function	Color - Actuator/Cap	Current Rating (Amps)	Ingress Protection
NKK Switches MB2185SB1W01-DA	12.5 mm	Panel Mount Rear	125 V	25000 Steps	100000 Cycles	No Marking	Epoxy Sealed Terminals	Button Round	30 V	Solder Lug	-30 ░C	85 °C	Standard	4PDT	On-On	Black	3 A 6 A
NKK Switches MB2185SB1W01-BA	12.5 mm	Panel Mount Rear	125 V	25000 Steps	100000 Cycles	No Marking	Epoxy Sealed Terminals	Button Round	30 V	Solder Lug	-30 ░C	85 °C	Standard	4PDT	On-On	Black	3 A 6 A
NKK Switches MB2185SB3W01-EC	12.5 mm	Panel Mount Rear	125 V	25000 Steps		No Marking	Epoxy Sealed Terminals	Button Round	30 V	Solder Lug	-30 ░C	85 °C	Standard	4PDT	On-On	Red	3 A 6 A	IP67 - Dust Tight Waterproof
NKK Switches MB2185SB3W01-CB	12.5 mm	Panel Mount Rear	125 V	25000 Steps		No Marking	Epoxy Sealed Terminals	Button Round	30 V	Solder Lug	-30 ░C	85 °C	Standard	4PDT	On-On	White	3 A 6 A	IP67 - Dust Tight Waterproof
NKK Switches MB2185SS1W03-BC	6.5 mm	Panel Mount Rear	125 V	25000 Steps	100000 Cycles	No Marking	Epoxy Sealed Terminals	Button Round	30 V	PC Pin	-30 ░C	85 °C	Standard	4PDT	On-On	Red	3 A 6 A
NKK Switches MB2185SD3W01	6.5 mm	Panel Mount Rear	125 V	25000 Steps		No Marking	Epoxy Sealed Terminals	Plunger for Cap	30 V	Solder Lug	-30 ░C	85 °C	Standard	4PDT	On-On		3 A 6 A	IP67 - Dust Tight Waterproof
NKK Switches MB2185SB1G01-DE	12.5 mm	Panel Mount Rear	28 V	50000 Cycles	100000 Cycles	No Marking	Epoxy Sealed Terminals	Button Round	28 V	Solder Lug	-30 ░C	85 °C	Standard	4PDT	On-On	Yellow	0.4 VA
NKK Switches MB2185SS1W03-CF	6.5 mm	Panel Mount Rear	125 V	25000 Steps	100000 Cycles	No Marking	Epoxy Sealed Terminals	Button Round	30 V	PC Pin	-30 ░C	85 °C	Standard	4PDT	On-On	Green	3 A 6 A
NKK Switches MB2185SS1W01-CA	6.5 mm	Panel Mount Rear	125 V	25000 Steps	100000 Cycles	No Marking	Epoxy Sealed Terminals	Button Round	30 V	Solder Lug	-30 ░C	85 °C	Standard	4PDT	On-On	Black	3 A 6 A
NKK Switches MB2185SS1G06	6.5 mm	Panel Mount Rear	28 V	50000 Cycles	100000 Cycles	No Marking	Epoxy Sealed Terminals	Plunger for Cap	28 V	Wire Wrap	-30 ░C	85 °C	Standard	4PDT	On-On		0.4 VA
