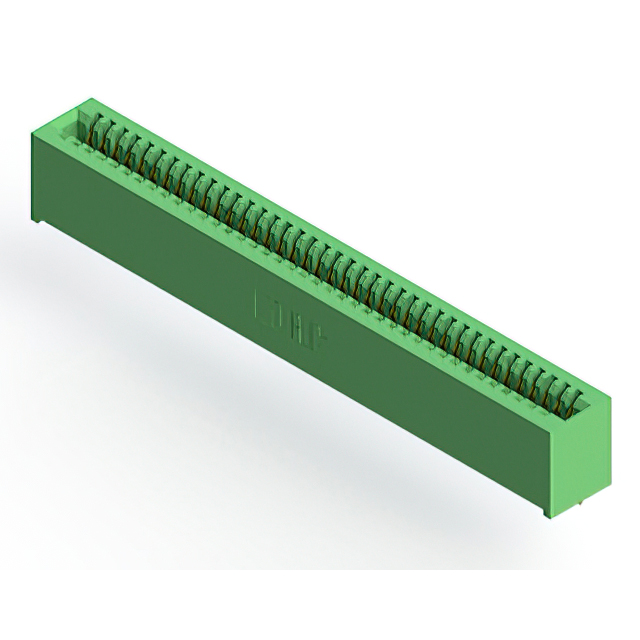

325-039-520-101

Active

EDAC Inc.

CONN EDGE SINGLE FML 39POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

325-039-520-101

Active

EDAC Inc.

CONN EDGE SINGLE FML 39POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-039-520-101

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	39
Number of Positions/Bay/Row [custom]	39
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

325-039 Series

Part	Color	Termination	Number of Positions	Card Thickness	Card Thickness	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Pitch [x]	Pitch [x]	Read Out	Number of Positions/Bay/Row [custom]	Contact Finish	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Contact Material	Card Type
EDAC Inc. 325-039-540-109	Green	Wire Wrap	39	3.18 mm	0.125 in	1	10 Áin	0.25 Ám	Cantilever	2.54 mm	0.1 in	Single	39	Gold	Diallyl Phthalate (DAP)	125 °C	-65 ░C	1	Through Hole	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	Female	Copper Alloy	Non Specified - Single Edge
EDAC Inc. 325-039-500-107	Green	Solder Eyelet(s)	39	3.18 mm	0.125 in	1	10 Áin	0.25 Ám	Cantilever	2.54 mm	0.1 in	Single	39	Gold	Diallyl Phthalate (DAP)	125 °C	-65 ░C	1	Through Hole		Flush Mount M3 Threaded Insert Top Opening		Female	Copper Alloy	Non Specified - Single Edge
EDAC Inc. 325-039-520-101	Green	Solder	39	3.18 mm	0.125 in	1	10 Áin	0.25 Ám	Cantilever	2.54 mm	0.1 in	Single	39	Gold	Diallyl Phthalate (DAP)	125 °C	-65 ░C	1	Through Hole				Female	Copper Alloy	Non Specified - Single Edge
EDAC Inc. 325-039-500-109	Green	Solder Eyelet(s)	39	3.18 mm	0.125 in	1	10 Áin	0.25 Ám	Cantilever	2.54 mm	0.1 in	Single	39	Gold	Diallyl Phthalate (DAP)	125 °C	-65 ░C	1	Through Hole	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	Female	Copper Alloy	Non Specified - Single Edge
EDAC Inc. 325-039-520-107	Green	Solder	39	3.18 mm	0.125 in	1	10 Áin	0.25 Ám	Cantilever	2.54 mm	0.1 in	Single	39	Gold	Diallyl Phthalate (DAP)	125 °C	-65 ░C	1	Through Hole		Flush Mount M3 Threaded Insert Top Opening		Female	Copper Alloy	Non Specified - Single Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.87

Description

General part information

325-039 Series

39 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
