FS660R08A6P2FLBBPSA1

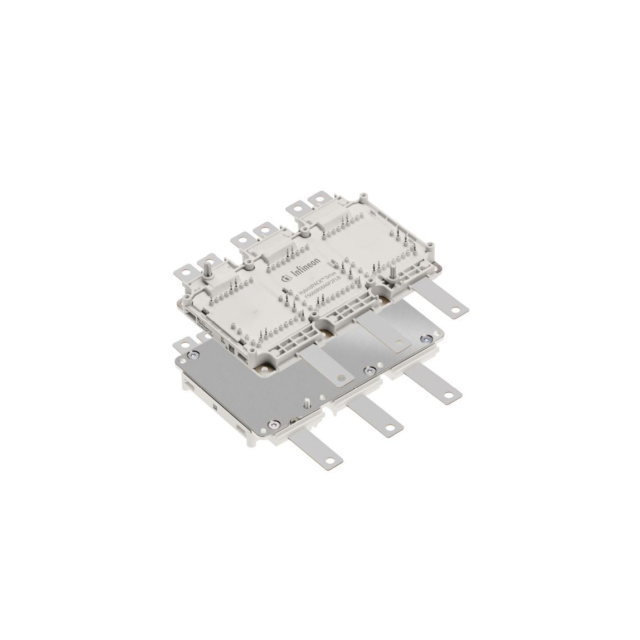

ActiveTHE FS660R08A6P2FLB IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT EDT2 MODULE IN A HYBRIDPACK™ DRIVE HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 750 V AND 660 A.
Deep-Dive with AI
Search across all available documentation for this part.
FS660R08A6P2FLBBPSA1
ActiveTHE FS660R08A6P2FLB IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT EDT2 MODULE IN A HYBRIDPACK™ DRIVE HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 750 V AND 660 A.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FS660R08A6P2FLBBPSA1 |
|---|---|
| Configuration | Three Phase Inverter |
| Current - Collector (Ic) (Max) [Max] | 450 A |
| Current - Collector Cutoff (Max) [Max] | 1 mA |
| IGBT Type | Trench Field Stop |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 80 nF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | True |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Max [Max] | 1053 W |
| Supplier Device Package | AG-HYBRIDD-1 |
| Vce(on) (Max) @ Vge, Ic | 1.35 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 750 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 6 | $ 427.17 | |
| 12 | $ 411.11 | |||
Description
General part information
FS660R08 Series
TheHybridPACK™Drive module with EDT2 IGBT and Diode is an automotive qualified power module designed forHybrid- and Electric Vehicle applications. The product FS770R08A6P2LB comes with a flat baseplate.
