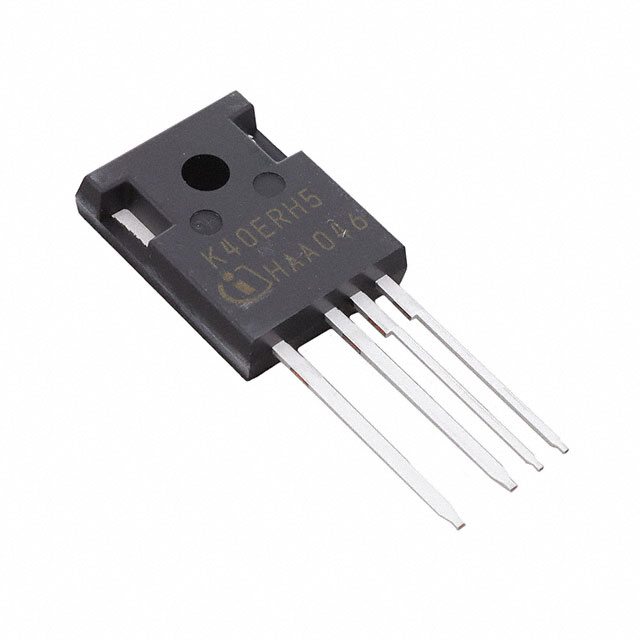

IKZA40N65RH5XKSA1

Active

Infineon Technologies

THE IKZA40N65RH5 IS A 650 V, 40 A TRENCHSTOP™ 5 H5 HYBRID COOLSIC™ IGBT DISCRETE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

IKZA40N65RH5XKSA1

Active

Infineon Technologies

THE IKZA40N65RH5 IS A 650 V, 40 A TRENCHSTOP™ 5 H5 HYBRID COOLSIC™ IGBT DISCRETE

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IKZA40N65RH5XKSA1

Current - Collector Pulsed (Icm)	60 A
Gate Charge	95 nC
IGBT Type	Trench Field Stop
Mounting Type	Through Hole
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	TO-247-4
Power - Max [Max]	250 W
Supplier Device Package	PG-TO247-4-3
Switching Energy	120 µJ, 140 µJ
Td (on/off) @ 25°C	165 ns
Td (on/off) @ 25°C	17 ns
Test Condition	20 A, 15 Ohm, 400 V, 15 V
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max)	650 V

IKZA40 Series

Part	IGBT Type	Vce(on) (Max) @ Vge, Ic	Td (on/off) @ 25°C	Td (on/off) @ 25°C	Voltage - Collector Emitter Breakdown (Max)	Current - Collector Pulsed (Icm)	Mounting Type	Test Condition	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge	Package / Case	Power - Max [Max]	Switching Energy	Supplier Device Package	Reverse Recovery Time (trr)	Current - Collector (Ic) (Max) [Max]	Td (on/off) @ 25°C	Voltage - Collector Emitter Breakdown (Max) [Max]
Infineon Technologies IKZA40N65RH5XKSA1	Trench Field Stop	2.1 V	165 ns	17 ns	650 V	60 A	Through Hole	15 Ohm 15 V 20 A 400 V	-40 C	175 °C	95 nC	TO-247-4	250 W	120 µJ 140 µJ	PG-TO247-4-3
Infineon Technologies IKZA40N65EH7XKSA1	Trench Field Stop	1.65 V			650 V		Through Hole	12.5 Ohm 15 V 40 A 400 V	-40 C	175 °C	81 nC	TO-247-4	210 W	360 µJ 370 µJ	PG-TO247-4-3	49.6 ns	80 A	13 ns 134 ns
Infineon Technologies IKZA40N120CH7XKSA1	Trench Field Stop	2.15 V		34 ns 360 ns			Through Hole		-40 C	175 °C		TO-247-4	330 W	1.01 mJ 970 µJ	PG-TO247-4-U02	90 ns	95 A		1200 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.63
		30	$ 4.41
		120	$ 3.70
		510	$ 3.19
Newark	Each	1	$ 5.68
		10	$ 5.38
		25	$ 5.21
		50	$ 5.12
		100	$ 5.03
		480	$ 4.95
		720	$ 4.86

Description

General part information

IKZA40 Series

TRENCHSTOP™ 5 H5 650 V, 40 A IGBT discrete co-packed with CoolSiC™ Schottky barrier diode G6 in Kelvin-emitter TO-247-4 package. The ultra-fast 650 V hard-switchingTRENCHSTOP™ 5 H5IGBT benefits very low switching losses at switching speed above 30 kHz. Combination of ultra-fastTRENCHSTOP™ 5 H5IGBT with half-ratedfreewheeling SiC Schottky barrier diodesinCoolSiC™ Hybrid discreteenables unprecedented reduction of total switching losses and allows to increase significantly switching frequency. The Kelvin emitter TO-247 4pin package provides ultra-low inductance to the gate-emitter control loop further improving switching performance especially at high switching frequencies.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
