Description

General part information

PLC1G Series

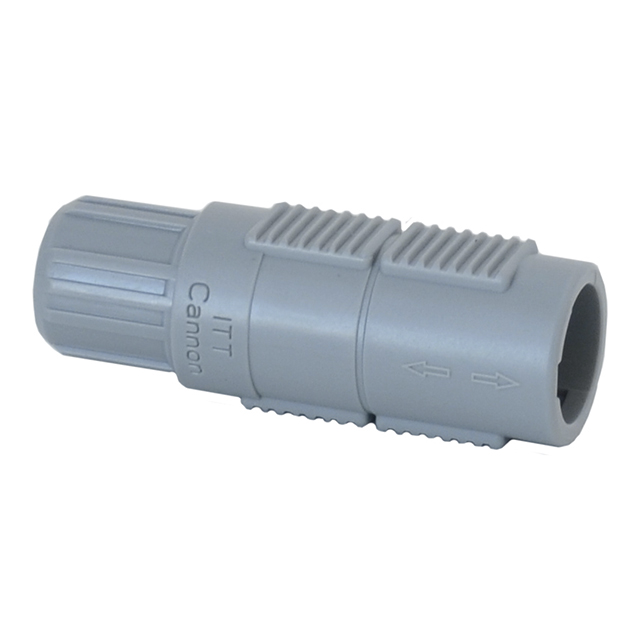

14 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical Specifications

Parameters and characteristics for this part

Specification	PLC1G822014

Applications	Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening (Max)	0.205 in
Cable Opening (Min)	0.157 in
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20 Ąin
Contact Material	Copper Alloy
Current Rating	2 A
Fastening Type	Latch Lock, Push-Pull
Features	Backshell
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-50 °C
Orientation Angle	0 °
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shielding	Unshielded
Termination	Solder Cup

PLC1G Series

...

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Applications	Operating Temperature (Min)	Operating Temperature (Max)	Backshell Material, Plating	Connector Type	Contact Finish - Mating	Ingress Protection Description	Ingress Protection IP Rating	Cable Opening (Max)	Cable Opening (Min)	Features	Shell Material	Current Rating	Mounting Type	Number of Positions	Orientation	Insert Material	Termination	Shielding	Color	Fastening Type	Primary Material	Contact Material	Orientation Angle
ITT Cannon, LLC PLC1G523J10	UL94 V-0	20 Ąin	Industrial Medical Testing Equipment & Measurement	-50 °C	150 °C	Polysulfone (PSU)	Female Sockets Receptacle	Gold	Dust Protected	IP50	0.256 in	0.209 in	Backshell	Polysulfone (PSU)	3 A	Free Hanging (In-Line)	10	J	Plastic	Solder Cup	Unshielded	Gray Green	Latch Lock Push-Pull	Plastic	Copper Alloy
ITT Cannon, LLC PLC1G822014	UL94 V-0	20 Ąin	Industrial Medical Testing Equipment & Measurement	-50 °C	150 °C	Polysulfone (PSU)	Female Sockets Receptacle	Gold	Dust Protected	IP50	0.205 in	0.157 in	Backshell	Polysulfone (PSU)	2 A	Free Hanging (In-Line)	14		Plastic	Solder Cup	Unshielded	Gray	Latch Lock Push-Pull	Plastic	Copper Alloy	0 °
ITT Cannon, LLC PLC1G623A02	UL94 V-0	20 Ąin	Industrial Medical Testing Equipment & Measurement	-50 °C	150 °C	Polysulfone (PSU)	Female Sockets Receptacle	Gold	Dust Protected	IP50	0.256 in	0.209 in	Backshell	Polysulfone (PSU)	10 A	Free Hanging (In-Line)	2	A	Plastic	Solder Cup	Unshielded	Blue Gray	Latch Lock Push-Pull	Plastic	Copper Alloy
ITT Cannon, LLC PLC1G623H10	UL94 V-0	20 Ąin	Industrial Medical Testing Equipment & Measurement	-50 °C	150 °C	Polysulfone (PSU)	Female Sockets Receptacle	Gold	Dust Protected	IP50	0.256 in	0.209 in	Backshell	Polysulfone (PSU)	3 A	Free Hanging (In-Line)	10	H	Plastic	Solder Cup	Unshielded	Blue Gray	Latch Lock Push-Pull	Plastic	Copper Alloy
ITT Cannon, LLC PLC1G621J05	UL94 V-0	20 Ąin	Industrial Medical Testing Equipment & Measurement	-50 °C	150 °C	Polysulfone (PSU)	Female Sockets Receptacle	Gold	Dust Protected	IP50	0.154 in	0.106 in	Backshell	Polysulfone (PSU)	7 A	Free Hanging (In-Line)	5	J	Plastic	Solder Cup	Unshielded	Blue Gray	Latch Lock Push-Pull	Plastic	Copper Alloy
ITT Cannon, LLC PLC1G421H03	UL94 V-0	20 Ąin	Industrial Medical Testing Equipment & Measurement	-50 °C	150 °C	Polysulfone (PSU)	Female Sockets Receptacle	Gold	Dust Protected	IP50	0.154 in	0.106 in	Backshell	Polysulfone (PSU)	10 A	Free Hanging (In-Line)	3	H	Plastic	Solder Cup	Unshielded	Gray Yellow	Latch Lock Push-Pull	Plastic	Copper Alloy
ITT Cannon, LLC PLC1G823J09	UL94 V-0	20 Ąin	Industrial Medical Testing Equipment & Measurement	-50 °C	150 °C	Polysulfone (PSU)	Female Sockets Receptacle	Gold	Dust Protected	IP50	0.256 in	0.209 in	Backshell	Polysulfone (PSU)	3 A	Free Hanging (In-Line)	9	J	Plastic	Solder Cup	Unshielded	Gray	Latch Lock Push-Pull	Plastic	Copper Alloy
ITT Cannon, LLC PLC1G823A06	UL94 V-0	20 Ąin	Industrial Medical Testing Equipment & Measurement	-50 °C	150 °C	Polysulfone (PSU)	Female Sockets Receptacle	Gold	Dust Protected	IP50	0.256 in	0.209 in	Backshell	Polysulfone (PSU)	6 A	Free Hanging (In-Line)	6	A	Plastic	Solder Cup	Unshielded	Gray	Latch Lock Push-Pull	Plastic	Copper Alloy
ITT Cannon, LLC PLC1G823H09	UL94 V-0	20 Ąin	Industrial Medical Testing Equipment & Measurement	-50 °C	150 °C	Polysulfone (PSU)	Female Sockets Receptacle	Gold	Dust Protected	IP50	0.256 in	0.209 in	Backshell	Polysulfone (PSU)	3 A	Free Hanging (In-Line)	9	H	Plastic	Solder Cup	Unshielded	Gray	Latch Lock Push-Pull	Plastic	Copper Alloy
ITT Cannon, LLC PLC1G422A05	UL94 V-0	20 Ąin	Industrial Medical Testing Equipment & Measurement	-50 °C	150 °C	Polysulfone (PSU)	Female Sockets Receptacle	Gold	Dust Protected	IP50	0.205 in	0.157 in	Backshell	Polysulfone (PSU)	7 A	Free Hanging (In-Line)	5	A	Plastic	Solder Cup	Unshielded	Gray Yellow	Latch Lock Push-Pull	Plastic	Copper Alloy
