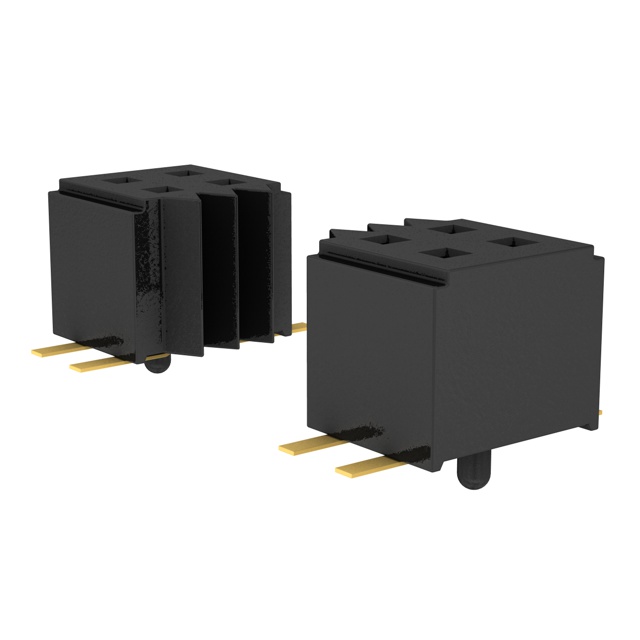

CLM-125-02-H-D-A

Active

Samtec Inc.

CONN RCPT 50POS 0.039 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLM-125-02-H-D-A

Active

Samtec Inc.

CONN RCPT 50POS 0.039 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLM-125-02-H-D-A

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.084 in
Insulation Height	2.14 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Termination	Solder

CLM-125 Series

Part	Features	Number of Rows	Fastening Type	Contact Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Shape	Material Flammability Rating	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Insulation Color	Contact Finish - Mating	Insulation Material	Insulation Height	Insulation Height	Connector Type	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. CLM-125-02-L-D-K-TR	Pick and Place	2	Push-Pull	Female Socket	Tin	10 çin	0.25 çm	All	Phosphor Bronze	-55 °C	125 °C	0.039 in	1 mm	50	Square	UL94 V-0	Surface Mount	0.039 "	1 mm	Solder	Black	Gold	Liquid Crystal Polymer (LCP)	0.084 in	2.14 mm	Receptacle	2.8 A per Contact
Samtec Inc. CLM-125-02-G-D-P-TR	Pick and Place	2	Push-Pull	Female Socket	Gold	10 çin	0.25 çm	All	Phosphor Bronze	-55 °C	125 °C	0.039 in	1 mm	50	Square	UL94 V-0	Surface Mount	0.039 "	1 mm	Solder	Black	Gold	Liquid Crystal Polymer (LCP)	0.084 in	2.14 mm	Receptacle	2.8 A per Contact	3 µin	0.076 µm
Samtec Inc. CLM-125-02-LM-D-A-P-TR	Board Guide Pick and Place	2	Push-Pull	Female Socket	Tin	10 çin	0.25 çm	All	Phosphor Bronze	-55 °C	125 °C	0.039 in	1 mm	50	Square	UL94 V-0	Surface Mount	0.039 "	1 mm	Solder	Black	Gold	Liquid Crystal Polymer (LCP)	0.084 in	2.14 mm	Receptacle	2.8 A per Contact
Samtec Inc. CLM-125-02-FM-D-A-P-TR	Board Guide Pick and Place	2	Push-Pull	Female Socket	Tin	3 µin	0.076 µm	All	Phosphor Bronze	-55 °C	125 °C	0.039 in	1 mm	50	Square	UL94 V-0	Surface Mount	0.039 "	1 mm	Solder	Black	Gold	Liquid Crystal Polymer (LCP)	0.084 in	2.14 mm	Receptacle	2.8 A per Contact
Samtec Inc. CLM-125-02-G-D-A	Board Guide	2	Push-Pull	Female Socket	Gold	10 çin	0.25 çm	All	Phosphor Bronze	-55 °C	125 °C	0.039 in	1 mm	50	Square	UL94 V-0	Surface Mount	0.039 "	1 mm	Solder	Black	Gold	Liquid Crystal Polymer (LCP)	0.084 in	2.14 mm	Receptacle	2.8 A per Contact	3 µin	0.076 µm
Samtec Inc. CLM-125-02-F-D-BE-A	Board Guide	2	Push-Pull	Female Socket	Tin	3 µin	0.076 µm	All	Phosphor Bronze	-55 °C	125 °C	0.039 in	1 mm	50	Square	UL94 V-0	Surface Mount	0.039 "	1 mm	Solder	Black	Gold	Liquid Crystal Polymer (LCP)	0.084 in	2.14 mm	Receptacle Bottom Entry	2.8 A per Contact
Samtec Inc. CLM-125-02-G-D-K	Pick and Place	2	Push-Pull	Female Socket	Gold	10 çin	0.25 çm	All	Phosphor Bronze	-55 °C	125 °C	0.039 in	1 mm	50	Square	UL94 V-0	Surface Mount	0.039 "	1 mm	Solder	Black	Gold	Liquid Crystal Polymer (LCP)	0.084 in	2.14 mm	Receptacle	2.8 A per Contact	3 µin	0.076 µm
Samtec Inc. CLM-125-02-H-D-A	Board Guide	2	Push-Pull	Female Socket	Gold	30 Áin	0.76 Ám	All	Phosphor Bronze	-55 °C	125 °C	0.039 in	1 mm	50	Square	UL94 V-0	Surface Mount	0.039 "	1 mm	Solder	Black	Gold	Liquid Crystal Polymer (LCP)	0.084 in	2.14 mm	Receptacle	2.8 A per Contact	3 µin	0.076 µm
Samtec Inc. CLM-125-02-LM-D		2	Push-Pull	Female Socket	Tin	10 çin	0.25 çm	All	Phosphor Bronze	-55 °C	125 °C	0.039 in	1 mm	50	Square	UL94 V-0	Surface Mount	0.039 "	1 mm	Solder	Black	Gold	Liquid Crystal Polymer (LCP)	0.084 in	2.14 mm	Receptacle	2.8 A per Contact
Samtec Inc. CLM-125-02-LM-D-PA	Pick and Place	2	Push-Pull	Female Socket	Tin	10 çin	0.25 çm	All	Phosphor Bronze	-55 °C	125 °C	0.039 in	1 mm	50	Square	UL94 V-0	Surface Mount	0.039 "	1 mm	Solder	Black	Gold	Liquid Crystal Polymer (LCP)	0.084 in	2.14 mm	Receptacle	2.8 A per Contact

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	22	$ 19.82

Description

General part information

CLM-125 Series

50 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
