1.30.093.621/2000

Active

RAFI USA

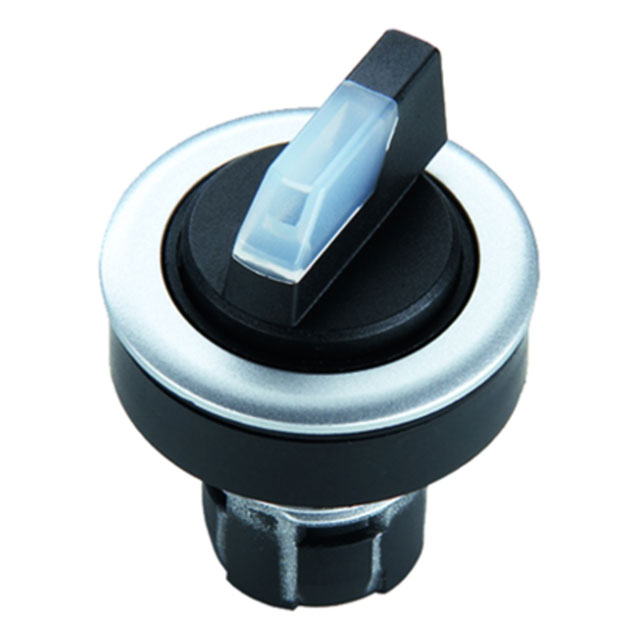

CONFIG SW BODY SELECTOR ILLUM

Search across all available documentation for this part.

Active

RAFI USA

CONFIG SW BODY SELECTOR ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	1.30.093.621/2000

(Select First, Then Apply Filters) Compatible Series	Rafix 16 F
Actuator Type	Selector
Illumination	Illuminated
Panel Cutout Dimensions	22.3 mm
Requires	Illumination Source, Contact Block(s)
Type	Maintained

Part	Requires	(Select First, Then Apply Filters) Compatible Series	Type	Panel Cutout Dimensions	Illumination	Actuator Type
RAFI USA 1.30.093.611/2000	Contact Block(s) Illumination Source	Rafix 16 F	Maintained	22.3 mm	Illuminated	Selector
RAFI USA 1.30.093.621/2000	Contact Block(s) Illumination Source	Rafix 16 F	Maintained	22.3 mm	Illuminated	Selector
RAFI USA 1.30.093.711/2000	Contact Block(s) Illumination Source	Rafix 16 F	Maintained	22.3 mm	Illuminated	Selector
RAFI USA 1.30.093.551/2000	Contact Block(s) Illumination Source	Rafix 16 F	Momentary	23.1 mm	Illuminated	Selector
RAFI USA 1.30.093.650/0200	Contact Block(s)	Rafix 16 F	Momentary	23.1 mm	Non-Illuminated	Selector
RAFI USA 1.30.093.600/0200	Contact Block(s)	Rafix 16 F	Maintained	23.1 mm	Non-Illuminated	Selector
RAFI USA 1.30.093.651/2000	Contact Block(s) Illumination Source	Rafix 16 F	Momentary	23.1 mm	Illuminated	Selector
RAFI USA 1.30.093.661/2000	Contact Block(s) Illumination Source	Rafix 16 F	Momentary	22.3 mm	Illuminated	Selector
RAFI USA 1.30.093.511/2000	Contact Block(s) Illumination Source	Rafix 16 F	Maintained	22.3 mm	Illuminated	Selector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Selector Illuminated
