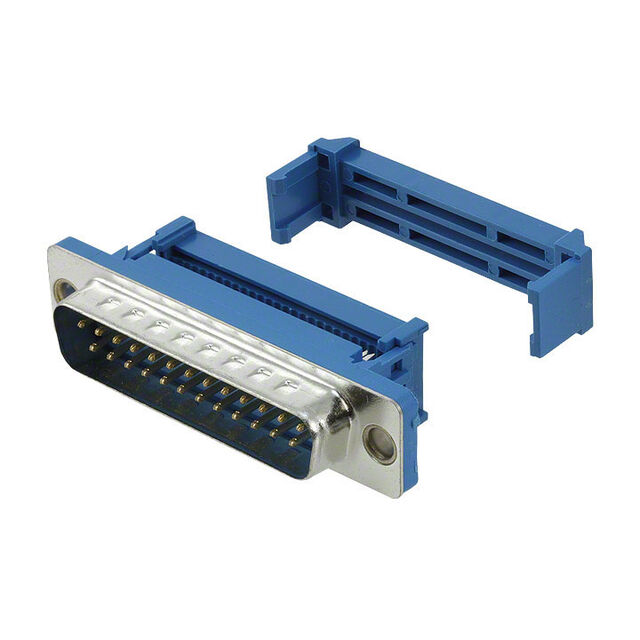

SDS103-PRW2-M25-SN00-211

Obsolete

Sullins Connector Solutions

CONN D-SUB PLUG 25POS IDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDS103-PRW2-M25-SN00-211

Obsolete

Sullins Connector Solutions

CONN D-SUB PLUG 25POS IDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDS103-PRW2-M25-SN00-211

Color	Blue
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Feed Through, Strain Relief
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC
Wire Gauge	28 AWG

SDS103 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Connector Type	Color	Connector Style	Material Flammability Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Type	Contact Finish	Contact Form	Flange Feature	Termination	Wire Gauge	Number of Rows	Current Rating (Amps)	Voltage Rating	Contact Finish Thickness	Dielectric Material	Number of Positions	Shell Size, Connector Layout	Shell Size, Connector Layout
Sullins Connector Solutions SDS103-PRW2-M25-SN00-211	B DB	3	Feed Through Strain Relief	Male Pins Plug	Blue	D-Sub	UL94 V-0	Brass	105 ░C	-55 °C	Free Hanging (In-Line)	Signal	Gold	Stamped	Housing/Shell (Unthreaded)	IDC Ribbon Cable	28 AWG	2	3 A	250 VDC	Flash	Polybutylene Terephthalate (PBT) Glass Filled
Sullins Connector Solutions SDS103-PRW2-F09-SN00-112	DE E	1	Feed Through Strain Relief	Receptacle Female Sockets	Black	D-Sub	UL94 V-0	Brass	105 ░C	-55 °C	Free Hanging (In-Line)	Signal	Gold	Stamped	Housing/Shell (Unthreaded)	IDC Ribbon Cable	28 AWG	2	3 A	250 VDC	Flash	Polybutylene Terephthalate (PBT) Glass Filled	9
Sullins Connector Solutions SDS103-PRW2-M09-SN00-132	DE E	1	Feed Through	Male Pins Plug	Black	D-Sub	UL94 V-0	Brass	105 ░C	-55 °C	Free Hanging (In-Line)	Signal	Gold	Stamped	Housing/Shell (Unthreaded)	IDC Ribbon Cable	28 AWG	2	3 A	250 VDC	Flash	Polybutylene Terephthalate (PBT) Glass Filled	9
Sullins Connector Solutions SDS103-PRW2-F09-SN00-212	DE E	1	Feed Through Strain Relief	Receptacle Female Sockets	Blue	D-Sub	UL94 V-0	Brass	105 ░C	-55 °C	Free Hanging (In-Line)	Signal	Gold	Stamped	Housing/Shell (Unthreaded)	IDC Ribbon Cable	28 AWG	2	3 A	250 VDC	Flash	Polybutylene Terephthalate (PBT) Glass Filled	9
Sullins Connector Solutions SDS103-PRW2-F15-SN00-212			Feed Through Strain Relief	Receptacle Female Sockets	Blue	D-Sub	UL94 V-0	Brass	105 ░C	-55 °C	Free Hanging (In-Line)	Signal	Gold	Stamped	Housing/Shell (Unthreaded)	IDC Ribbon Cable	28 AWG	2	3 A	250 VDC	Flash	Polybutylene Terephthalate (PBT) Glass Filled	15	2
Sullins Connector Solutions SDS103-PRW2-M15-SN00-211			Feed Through Strain Relief	Male Pins Plug	Blue	D-Sub	UL94 V-0	Brass	105 ░C	-55 °C	Free Hanging (In-Line)	Signal	Gold	Stamped	Housing/Shell (Unthreaded)	IDC Ribbon Cable	28 AWG	2	3 A	250 VDC	Flash	Polybutylene Terephthalate (PBT) Glass Filled	15	2
Sullins Connector Solutions SDS103-PRW2-F25-SN00-211	B DB	3	Feed Through Strain Relief	Receptacle Female Sockets	Blue	D-Sub	UL94 V-0	Brass	105 ░C	-55 °C	Free Hanging (In-Line)	Signal	Gold	Stamped	Housing/Shell (Unthreaded)	IDC Ribbon Cable	28 AWG	2	3 A	250 VDC	Flash	Polybutylene Terephthalate (PBT) Glass Filled
Sullins Connector Solutions SDS103-PRW2-F09-SN00-132	DE E	1	Feed Through	Receptacle Female Sockets	Black	D-Sub	UL94 V-0	Brass	105 ░C	-55 °C	Free Hanging (In-Line)	Signal	Gold	Stamped	Housing/Shell (Unthreaded)	IDC Ribbon Cable	28 AWG	2	3 A	250 VDC	Flash	Polybutylene Terephthalate (PBT) Glass Filled	9
Sullins Connector Solutions SDS103-PRW2-F09-SN00-211	DE E	1	Feed Through Strain Relief	Receptacle Female Sockets	Blue	D-Sub	UL94 V-0	Brass	105 ░C	-55 °C	Free Hanging (In-Line)	Signal	Gold	Stamped	Housing/Shell (Unthreaded)	IDC Ribbon Cable	28 AWG	2	3 A	250 VDC	Flash	Polybutylene Terephthalate (PBT) Glass Filled	9
Sullins Connector Solutions SDS103-PRW2-M37-SN00-132			Feed Through	Male Pins Plug	Black	D-Sub	UL94 V-0	Brass	105 ░C	-55 °C	Free Hanging (In-Line)	Signal	Gold	Stamped	Housing/Shell (Unthreaded)	IDC Ribbon Cable	28 AWG	2	3 A	250 VDC	Flash	Polybutylene Terephthalate (PBT) Glass Filled	37		4 (DC C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SDS103 Series

25 Position D-Sub Plug, Male Pins Connector
