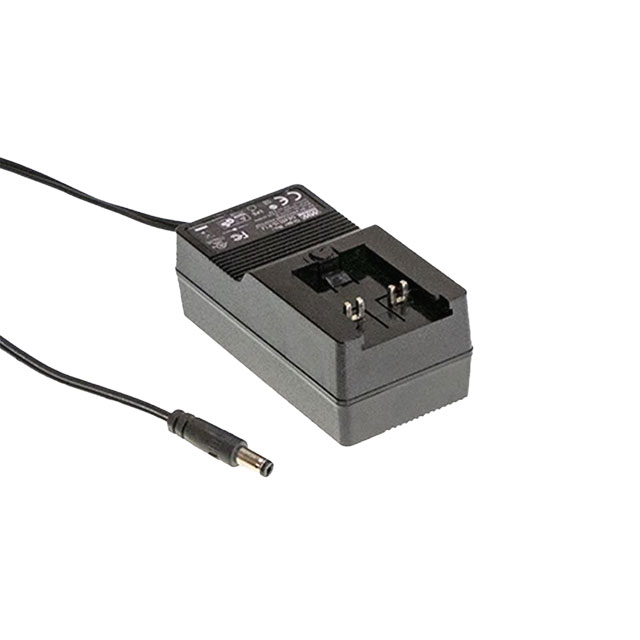

Specification	GE40I18-P1J

Applications	ITE (Commercial)
Approval Agency	FCC, EAC, TUV, cULus, CE, RCM, GS, CCC
Cord Length	59 in
Current - Output (Max)	2.2 A
Efficiency	Level VI, CoC Tier 2
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.1 mm
Output Connector Length	11 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension Height	1.57 in
Size / Dimension Length	3.7 in
Size / Dimension Width	1.91 in
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	18 V
Weight	0.441 lb

GE40I18 Series

Part	Cord Length	Region Utilized	Power (Watts)	Approval Agency	Output Connector I.D.	Output Connector	Output Connector Length	Output Connector O.D.	Polarization	Efficiency	Voltage - Output	Operating Temperature (Max)	Operating Temperature (Min)	Form	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Current - Output (Max)	No Load Power Consumption (Max)	Input Type	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Applications	Input Connector	Weight
MEAN WELL USA Inc. GE40I18-P1J	59 in	International	40 W	CCC CE cULus EAC FCC GS RCM TUV	2.1 mm	Barrel Plug	11 mm	5.5 mm	Positive Center	CoC Tier 2 Level VI	18 V	70 °C	-30 °C	Wall Mount (Class II)	1.57 in	3.7 in	1.91 in	2.2 A	75 mW	Multi-Blade (Sold Separately)	90 V	264 V	ITE (Commercial)	Multi-Blade	0.441 lb
