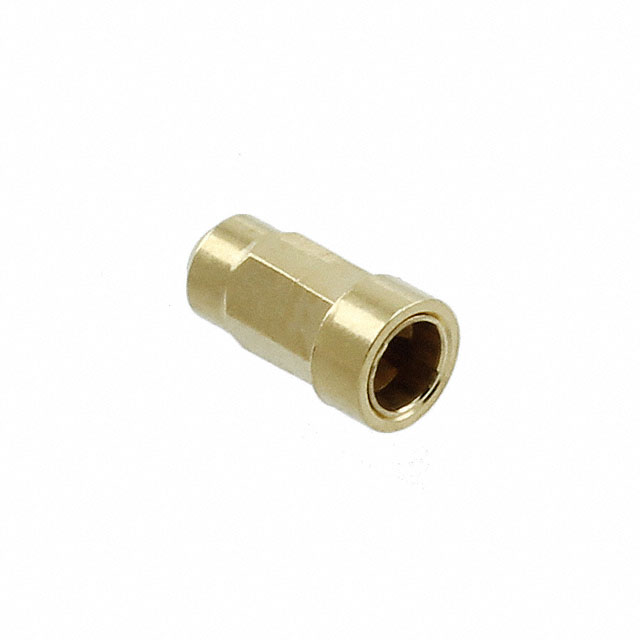

6342-0-15-15-42-27-10-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT RECEPTACLE; ACCEPTS .0
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6342-0-15-15-42-27-10-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT RECEPTACLE; ACCEPTS .0
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6342-0-15-15-42-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.063 in |
| Accepts Pin Diameter [Max] | 1.6 mm |
| Accepts Pin Diameter [Min] | 0.059 in |
| Accepts Pin Diameter [Min] | 1.5 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.106 in |
| Flange Diameter [diameter] | 2.69 mm |
| Insertion Force | 20 N |
| Length - Overall [x] | 0.203 " |
| Length - Overall [x] | 5.16 mm |
| Mounting Hole Diameter [diameter] | 0.09 in |
| Mounting Hole Diameter [diameter] | 2.29 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth | 4.39 mm |
| Socket Depth | 0.173 in |
| Tail Type | No Tail |
| Termination | Press-Fit, Hex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.14 | |
| 10 | $ 0.87 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.52 | |||
| 3000 | $ 0.46 | |||
Description
General part information
6342-0 Series
Pin Receptacle Connector 0.059" ~ 0.063" (1.50mm ~ 1.60mm) No Tail Press-Fit, Hex
