Capacitors

C333C154G5G5TA7301

Active

KEMET

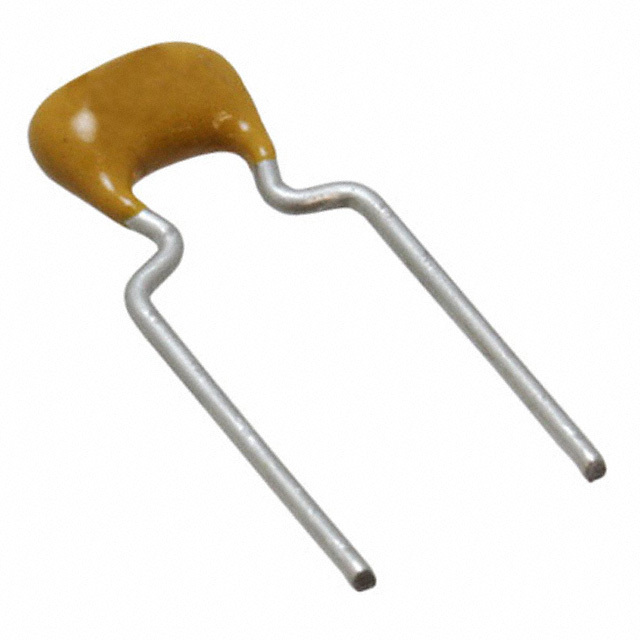

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED 50V 0.15UF C0G 2% LS=5.08MM

Capacitors

C333C154G5G5TA7301

Active

KEMET

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED 50V 0.15UF C0G 2% LS=5.08MM

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C333C154G5G5TA7301

Applications	General Purpose
Capacitance	0.15 µF
Features	Low ESL
Height - Seated (Max)	0.4 in
Lead Spacing	0.2 in
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Size / Dimension Length	0.28 in
Size / Dimension Width	0.16 in
Temperature Coefficient	NP0, C0G
Tolerance	2 %
Voltage - Rated	50 V

C333C Series

...

Part	Temperature Coefficient	Features	Mounting Type	Lead Style	Voltage - Rated	Tolerance	Package / Case	Height - Seated (Max)	Capacitance	Operating Temperature (Max)	Operating Temperature (Min)	Lead Spacing	Applications	Size / Dimension Length	Size / Dimension Width
KEMET C333C102FAG5TA	C0G NP0	Low ESL	Through Hole	Formed Leads - Kinked	250 V	1 %	Radial	0.4 in	1000 pF	125 °C	-55 °C	0.2 in	General Purpose	0.28 in	0.16 in
KEMET C333C683J5G5TA	C0G NP0	Low ESL	Through Hole	Formed Leads - Kinked	50 V	5 %	Radial	0.4 in	0.068 µF	125 °C	-55 °C	0.2 in	General Purpose	0.28 in	0.16 in
KEMET C333C561FAG5TA7301	C0G NP0	Low ESL	Through Hole	Formed Leads - Kinked	250 V	1 %	Radial	0.4 in	560 pF	125 °C	-55 °C	0.2 in	General Purpose	0.28 in	0.16 in
KEMET C333C394J5G5TA7301	C0G NP0	Low ESL	Through Hole	Formed Leads - Kinked	50 V	5 %	Radial	0.4 in	0.39 µF	125 °C	-55 °C	0.2 in	General Purpose	0.28 in	0.16 in
KEMET C333C273G2G5TA7301	C0G NP0	Low ESL	Through Hole	Formed Leads - Kinked	200 VDC	2 %	Radial	0.4 in	0.027 µF	125 °C	-55 °C	0.2 in	General Purpose	0.28 in	0.16 in
KEMET C333C224F1G5TA	C0G NP0	Low ESL	Through Hole	Formed Leads - Kinked	100 VAC/DC	1 %	Radial	0.4 in	0.22 µF	125 °C	-55 °C	0.2 in	General Purpose	0.28 in	0.16 in
KEMET C333C223KAG5TA7301	C0G NP0	Low ESL	Through Hole	Formed Leads - Kinked	250 V	10 %	Radial	0.4 in	0.022 µF	125 °C	-55 °C	0.2 in	General Purpose	0.28 in	0.16 in
KEMET C333C124F2G5TA	C0G NP0	Low ESL	Through Hole	Formed Leads - Kinked	200 VDC	1 %	Radial	0.4 in	0.12 µF	125 °C	-55 °C	0.2 in	General Purpose	0.28 in	0.16 in
KEMET C333C154G5G5TA7301	C0G NP0	Low ESL	Through Hole	Formed Leads - Kinked	50 V	2 %	Radial	0.4 in	0.15 µF	125 °C	-55 °C	0.2 in	General Purpose	0.28 in	0.16 in
KEMET C333C622JAG5TA	C0G NP0	Low ESL	Through Hole	Formed Leads - Kinked	250 V	5 %	Radial	0.4 in	6200 pF	125 °C	-55 °C	0.2 in	General Purpose	0.28 in	0.16 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Tape & Reel (TR)	1500	$ 1.40	<4d
Mouser	N/A	1	$ 3.48	30d+
		10	$ 2.51
		50	$ 2.17
		100	$ 1.91
		500	$ 1.71
		1000	$ 1.40

CAD

3D models and CAD resources for this part

Description

General part information

C333C Series

0.15 µF ±2% 50V Ceramic Capacitor C0G, NP0 Radial

Documents

Technical documentation and resources

C333C154G5G5TA7301 | Datasheet
