97131.6

Active

Pflitsch

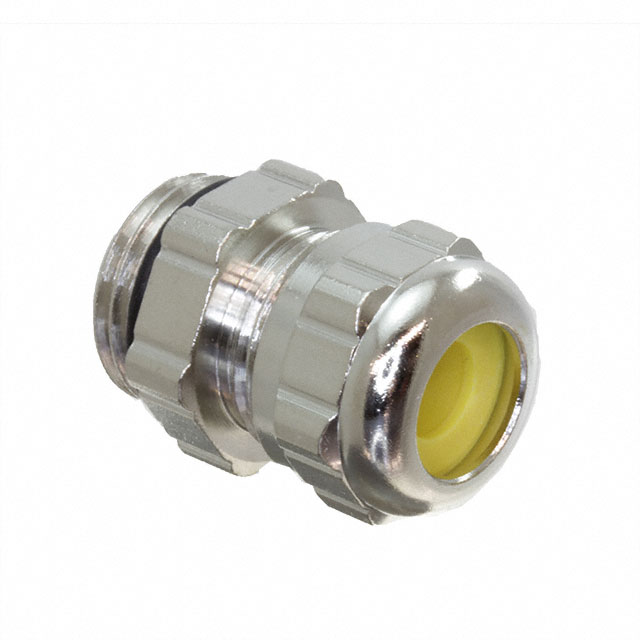

CABLE GLAND 4.06-6.6MM M16 BRASS

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 4.06-6.6MM M16 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	97131.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.26 in
Outside Cable Diameter (Max) [Max] [diameter]	6.6 mm
Outside Cable Diameter (Min) [Min] [diameter]	4.06 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.16 in
Panel Hole Size	0.63 in
Panel Hole Size	16 mm
Thread Length	0.24 in
Thread Length	6.1 mm
Thread Size	M16x1.5
Type	Cable Gland

Part	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Color	Type	Thread Length	Thread Length	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Thread Size
Pflitsch 97131.6	Brass Nickel Plated	0.26 in	6.6 mm	-40 °C	300 °C	Sealing Ring	Silver	Cable Gland	0.24 in	6.1 mm	0.63 in	16 mm	4.06 mm	0.16 in	IP68 - Dust Tight Waterproof; NEMA 4X	M16x1.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M16x1.5 Silver
