3410.0035.03

Active

SCHURTER Inc.

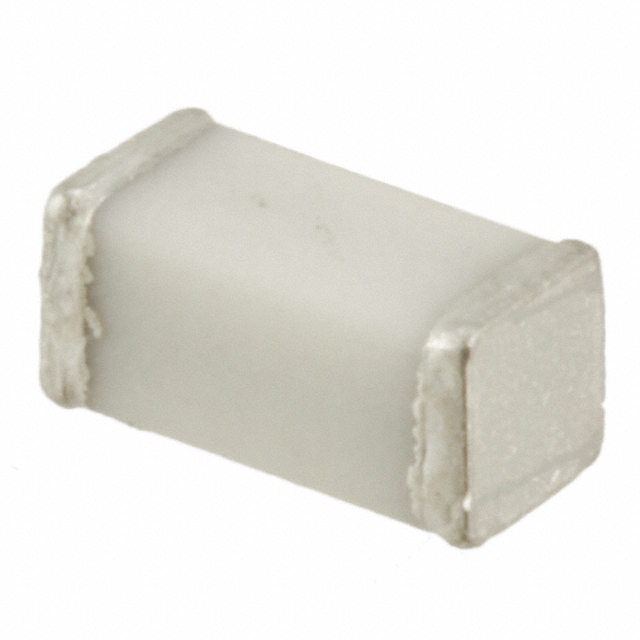

"MGA, 2 A, 125 VDC, 125 VAC, SUPER-QUICK-ACTING FF, BLISTER TAPE 33 CM REEL PCS., FUSE, SMT, 3.2 X 1.6 MM\/

Search across all available documentation for this part.

Active

SCHURTER Inc.

"MGA, 2 A, 125 VDC, 125 VAC, SUPER-QUICK-ACTING FF, BLISTER TAPE 33 CM REEL PCS., FUSE, SMT, 3.2 X 1.6 MM\/

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3410.0035.03	3410.0035 Series

Breaking Capacity @ Rated Voltage	300 A, 50 A	50 - 300 A
Current Rating (Amps)	2 A	2 A
DC Cold Resistance	0.039 Ohms	0.039 Ohms
Fuse Type	Board Mount	Board Mount
Melting I˛t	0.089	0.089
Melting I²t	-	0.089
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2-SMD, Square End Block	2-SMD, Square End Block
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	1.55 mm	1.55 mm
Size / Dimension [y]	0.061 in	0.061 in
Size / Dimension [z]	1.55 mm	1.55 mm
Size / Dimension [z]	0.061 "	0.061 "
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	125 VDC	125 VDC

Power Inductors - SMD PWRIND,SMT,Shld,IRated 5.00x5.00x2.00mm

Part	Voltage Rating - DC	Package / Case	Melting I˛t	Fuse Type	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Response Time	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	DC Cold Resistance	Melting I²t
SCHURTER Inc. 3410.0035.03	125 VDC	2-SMD, Square End Block	0.089	Board Mount	50 A, 300 A	125 V	Fast Blow	2 A	1.55 mm	1.55 mm	0.126 in	0.061 in	0.061 "	3.2 mm	Surface Mount	-55 °C	150 °C	0.039 Ohms
SCHURTER Inc. 3410.0035.04	125 VDC	2-SMD, Square End Block	0.089	Board Mount	50 A, 300 A	125 V	Fast Blow	2 A	1.55 mm	1.55 mm	0.126 in	0.061 in	0.061 "	3.2 mm	Surface Mount	-55 °C	150 °C	0.039 Ohms
SCHURTER Inc. 3410.0035.02	125 VDC	2-SMD, Square End Block		Board Mount	50 A, 300 A	125 V	Fast Blow	2 A	1.55 mm	1.55 mm	0.126 in	0.061 in	0.061 "	3.2 mm	Surface Mount	-55 °C	150 °C	0.039 Ohms	0.089
SCHURTER Inc. 3410.0035.01	125 VDC	2-SMD, Square End Block		Board Mount	50 A, 300 A	125 V	Fast Blow	2 A	1.55 mm	1.55 mm	0.126 in	0.061 in	0.061 "	3.2 mm	Surface Mount	-55 °C	150 °C	0.039 Ohms	0.089

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
