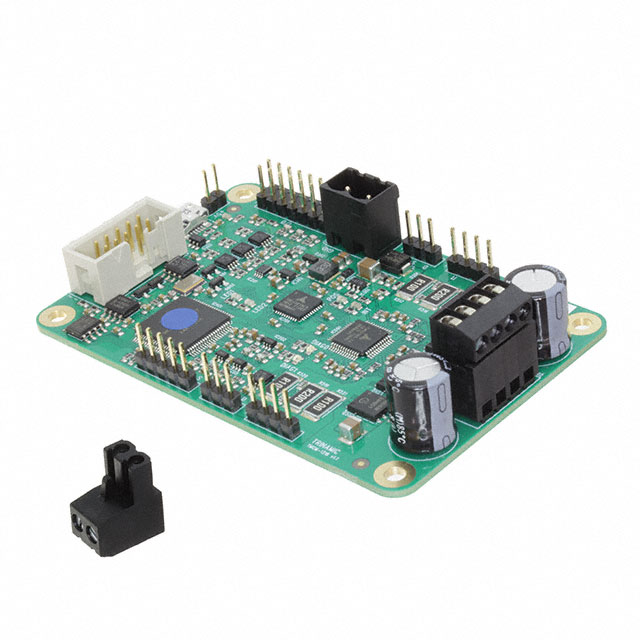

TMCM-1316 STEPROCKER
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 1.2A, 3.1A, 6.0A,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-1316 STEPROCKER |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 5.7 A |
| Interface | RS-485, USB |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Type | Board |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 268.20 | |
| 10 | $ 232.32 | |||
TMCM-1316 Series
STEPPER DRIVER 1.2A, 3.1A, 6.0A,
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Control / Drive Type | Motor Type | Type | Current - Output | Interface | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1316 STEPROCKER | 30 VDC | 10 VDC | Bipolar, Stepper | Stepper | Board | 5.7 A | RS-485, USB | Chassis Mount | 50 °C | -25 °C |
Description
General part information
TMCM-1316 Series
Stepper, Bipolar 10 ~ 30VDC Supply 5.7A Load
