EV-VNH7070BAS
ActiveEVALUATION BOARD, VNH7070BAS MOTOR DRIVER, FULL BRIDGE, 70MOHM ON RESISTANCE
Deep-Dive with AI
Search across all available documentation for this part.
EV-VNH7070BAS
ActiveEVALUATION BOARD, VNH7070BAS MOTOR DRIVER, FULL BRIDGE, 70MOHM ON RESISTANCE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EV-VNH7070BAS |
|---|---|
| Function | Motor Controller/Driver |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | VNH7070BAS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.36 | |
Description
General part information
EV-VNH7070BAS Series

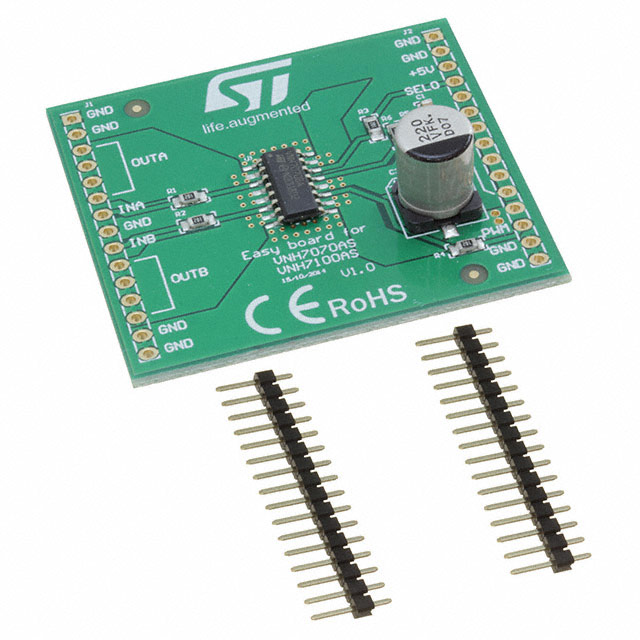

EV-VNH7070BAS provides you an easy way to connect STMicroelectronics®VIPower®M0-7 H-Bridge drivers into your existing prototype circuitry. This evaluation board comes preassembled with VNH7070BAS H-Bridge. On board minimum set of electrical components (as for device datasheet recommendation) enables the user to directly connect the load, the power supply and the microcontroller without any additional effort in external component design and connection.
VNH7070BAS is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side driver and two low-side switches. Both switches are designed using ST proprietary VIPower M0 technology that allows to efficiently integrate on the same die a true Power MOSFET with intelligent signal/protection circuitry. The three dies are assembled in a SO-16N package on electrically isolated leadframes.
Moreover, its fully symmetrical mechanical design allows superior manufacturability at board level.
