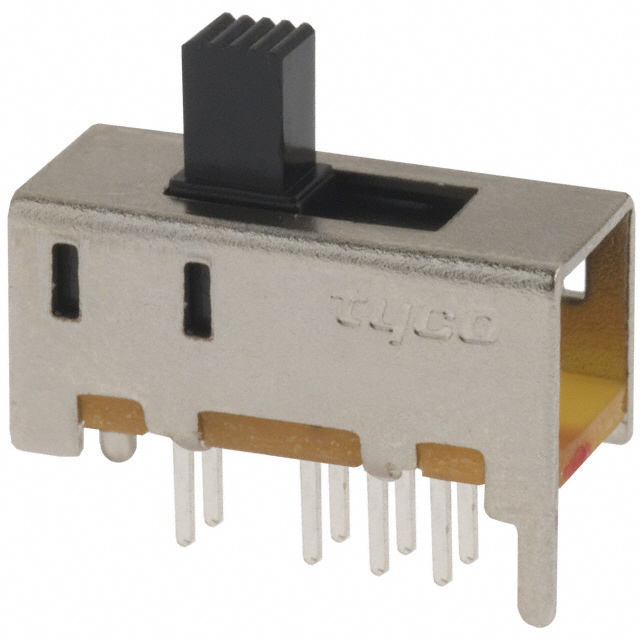

MHS233

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DP3T 300MA 125V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DP3T 300MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MHS233

Actuator Length [x]	4.5 mm
Actuator Material	Polyoxymethylene (Acetal) (POM)
Actuator Type	Standard
Circuit	DP3T
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Shorting
Current Rating (Amps)	300 mA
Electrical Life	15000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	15000 Cycles
Mounting Type	Through Hole
Operating Force	600 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On-On
Switch Travel	2 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Length [x]	Circuit	Contact Timing	Mechanical Life	Contact Finish	Current Rating (Amps)	Operating Force	Voltage Rating - AC	Mounting Type	Electrical Life	Features	Actuator Type	Switch Function	Contact Material	Actuator Material	Voltage Rating - DC
TE Connectivity Raychem Cable Protection MHS223RA	2 mm	85 °C	-20 C	PC Pin	4.5 mm	DPDT	Shorting	15000 Cycles	Silver	300 mA	600 gf	125 V	Through Hole Right Angle	15000 Cycles	Epoxy Sealed Terminals	Standard	On-Off-On	Copper Alloy	Polyoxymethylene (Acetal) (POM)
TE Connectivity Raychem Cable Protection MHS222K	4 mm	85 °C	-20 C	PC Pin	10 mm	DPDT	Shorting	15000 Cycles	Silver	300 mA	600 gf	125 V	Through Hole	15000 Cycles	Epoxy Sealed Terminals	Baton	On-On	Copper Alloy	Aluminum
TE Connectivity Raychem Cable Protection MHS233	2 mm	85 °C	-20 C	PC Pin	4.5 mm	DP3T	Shorting	15000 Cycles	Silver	300 mA	600 gf	125 V	Through Hole	15000 Cycles	Epoxy Sealed Terminals	Standard	On-On-On	Copper Alloy	Polyoxymethylene (Acetal) (POM)
TE Connectivity Raychem Cable Protection MHS233G	2 mm	85 °C	-20 C	PC Pin	4.5 mm	DP3T	Shorting	15000 Cycles	Gold	0.4 VA	600 gf	20 V	Through Hole	15000 Cycles	Epoxy Sealed Terminals	Standard	On-On-On	Copper Alloy	Polyoxymethylene (Acetal) (POM)	20 V
TE Connectivity Raychem Cable Protection MHS223	2 mm	85 °C	-20 C	PC Pin	4.5 mm	DPDT	Shorting	15000 Cycles	Silver	300 mA	600 gf	125 V	Through Hole	15000 Cycles	Epoxy Sealed Terminals	Standard	On-Off-On	Copper Alloy	Polyoxymethylene (Acetal) (POM)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch DP3T Through Hole
