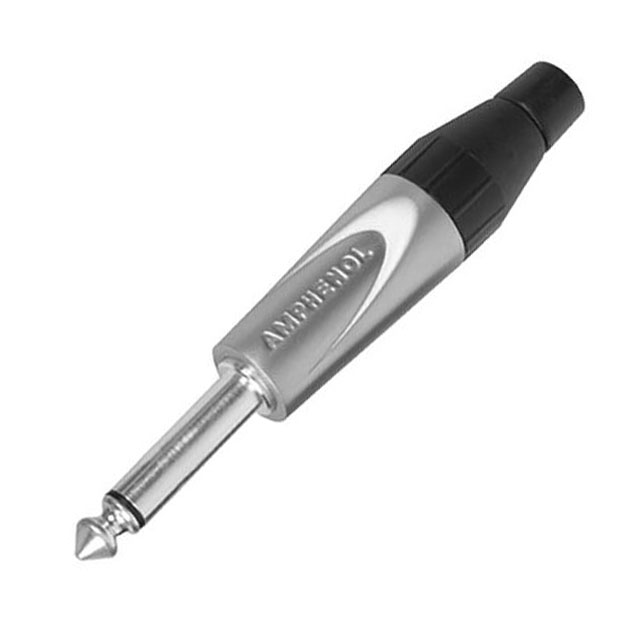

TM2P

Active

AMPHENOL AUDIO

PHONE AUDIO CONNECTOR, MONO, 2 CONTACTS, PLUG, 6.35 MM, CABLE MOUNT, NICKEL PLATED CONTACTS

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

PHONE AUDIO CONNECTOR, MONO, 2 CONTACTS, PLUG, 6.35 MM, CABLE MOUNT, NICKEL PLATED CONTACTS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TM2P	TM2 Series

Body Color	Silver	Silver, Black
Connector Type	Phone Plug	Phone Plug
Contact Material	Brass	Brass
Contact Material - Plating [custom]	Nickel	Nickel
Current Rating (Amps)	10 A	10 A
Gender	Male	Male
Housing Material	Zinc Alloy	Zinc Alloy
Internal Switch(s)	False	False
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Shielding	Unshielded	Unshielded
Signal Lines	Mono	Mono
Termination	Solder Eyelet(s)	Solder Eyelet(s)

PHONE AUDIO CONNECTOR, MONO, 2 CONTACTS, PLUG, 6.35 MM, CABLE MOUNT, NICKEL PLATED CONTACTS

Part	Gender	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Color	Contact Material - Plating [custom]	Current Rating (Amps)	Internal Switch(s)	Signal Lines	Connector Type	Mounting Type	Termination	Housing Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
AMPHENOL AUDIO TM2P	Male	Unshielded	2	2	Silver	Nickel	10 A		Mono	Phone Plug	Free Hanging (In-Line)	Solder Eyelet(s)	Zinc Alloy	Brass	-25 °C	75 ░C
AMPHENOL AUDIO TM2PB	Male	Unshielded	2	2	Black, Silver	Nickel	10 A		Mono	Phone Plug	Free Hanging (In-Line)	Solder Eyelet(s)	Zinc Alloy	Brass	-25 °C	75 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s)
