914S-2-5-00300

Active

CnC Tech, LLC

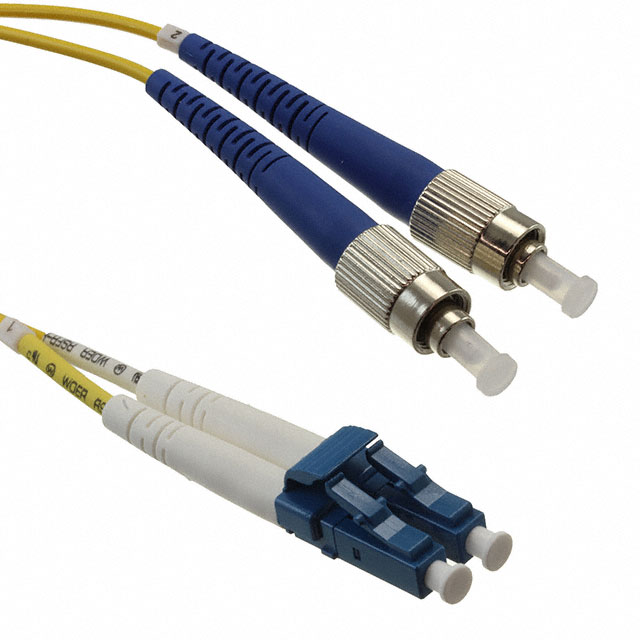

CABLE ASSEMBLY DUPLEX 3M DUPLEX LC TO DUPLEX FC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	914S-2-5-00300	914S-2-5 Series

1st Connector	LC Duplex	LC Duplex
2nd Connector	FC (2)	FC (2)
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Color - Cable	Yellow	Yellow
Color - Connectors	Blue	Blue
Features	-	Plenum
Fiber Type	9/125	9/125
Insertion Loss	0.3 dB	0.3 dB
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Length - Overall	-	5 m
Length - Overall	-	16.4 ft
Length - Overall [x]	3 m	1 - 25 m
Length - Overall [x]	9.8 ft	3.3 - 82 ft
Ratings	-	OFNP
Return Loss	50 dB	50 dB
Type	Singlemode, Duplex	Singlemode, Duplex

914S-2-5 Series

FIBER OPTIC CBL LC-FC DUPLEX 10M

Part	Fiber Type	Features	Color - Connectors	Insertion Loss	Type	2nd Connector	Length - Overall [x]	Length - Overall [x]	1st Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Return Loss	Ratings	Color - Cable	Jacket (Insulation) Material	Length - Overall	Length - Overall
CnC Tech, LLC 914S-2-5-01000-PL	9/125	Plenum	Blue	0.3 dB	Duplex, Singlemode	FC (2)	10 m	32.8 ft	LC Duplex	2 mm	0.08 in	50 dB	OFNP	Yellow
CnC Tech, LLC 914S-2-5-00300	9/125		Blue	0.3 dB	Duplex, Singlemode	FC (2)	3 m	9.8 ft	LC Duplex	2 mm	0.08 in	50 dB		Yellow	Poly-Vinyl Chloride (PVC)
CnC Tech, LLC 914S-2-5-02500-PL	9/125		Blue	0.3 dB	Duplex, Singlemode	FC (2)	25 m	82 ft	LC Duplex	2 mm	0.08 in	50 dB	OFNP	Yellow
CnC Tech, LLC 914S-2-5-00200	9/125		Blue	0.3 dB	Duplex, Singlemode	FC (2)	2 m	6.6 ft	LC Duplex	2 mm	0.08 in	50 dB		Yellow	Poly-Vinyl Chloride (PVC)
CnC Tech, LLC 914S-2-5-00300-PL	9/125	Plenum	Blue	0.3 dB	Duplex, Singlemode	FC (2)	3 m	9.8 ft	LC Duplex	2 mm	0.08 in	50 dB	OFNP	Yellow
CnC Tech, LLC 914S-2-5-00500-PL	9/125	Plenum	Blue	0.3 dB	Duplex, Singlemode	FC (2)			LC Duplex	2 mm	0.08 in	50 dB	OFNP	Yellow		5 m	16.4 ft
CnC Tech, LLC 914S-2-5-01500	9/125		Blue	0.3 dB	Duplex, Singlemode	FC (2)	15 m	49.2 '	LC Duplex	2 mm	0.08 in	50 dB		Yellow	Poly-Vinyl Chloride (PVC)
CnC Tech, LLC 914S-2-5-00500	9/125		Blue	0.3 dB	Duplex, Singlemode	FC (2)			LC Duplex	2 mm	0.08 in	50 dB		Yellow	Poly-Vinyl Chloride (PVC)	5 m	16.4 ft
CnC Tech, LLC 914S-2-5-00700-PL	9/125	Plenum	Blue	0.3 dB	Duplex, Singlemode	FC (2)	7 m	23 ft	LC Duplex	2 mm	0.08 in	50 dB	OFNP	Yellow
CnC Tech, LLC 914S-2-5-02000-PL	9/125		Blue	0.3 dB	Duplex, Singlemode	FC (2)	20 m	65.6 ft	LC Duplex	2 mm	0.08 in	50 dB	OFNP	Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.72
		20	$ 18.15
		40	$ 16.80
		100	$ 16.24
		260	$ 15.35
		500	$ 14.90

Description

General part information

914S-2-5 Series

Cable Fiber Optic LC Duplex To FC (2) 9/125 9.8' (3.0m)
