925370-6

Active

TE Connectivity AMP Connectors

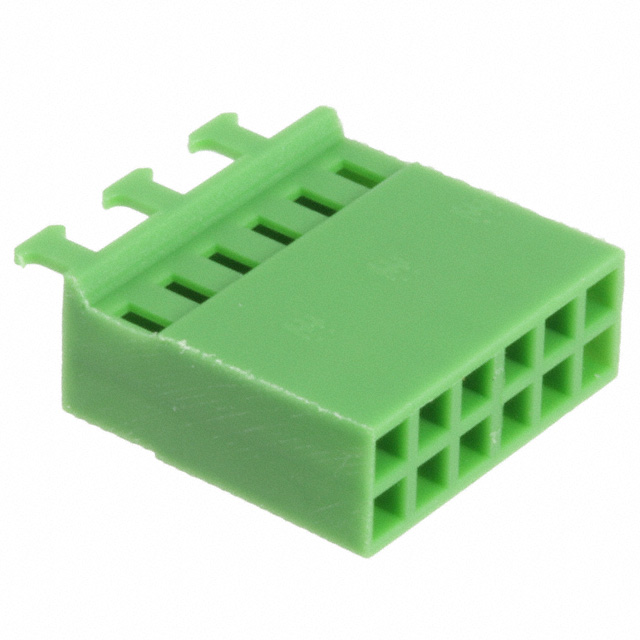

CONN RCPT HSG 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

925370-6

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 12POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.88
		10	$ 1.72
		25	$ 1.67
		50	$ 1.65
		100	$ 1.54
		250	$ 1.51
		500	$ 1.37
		1000	$ 1.23
		3000	$ 1.14

Description

General part information

925370 Series

12 Rectangular Connectors - Housings Receptacle Green 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Specification	925370-6	925370 Series

Color	Green	Green
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	12	4 - 30
Number of Positions	-	16
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows	Note	Row Spacing [x]	Row Spacing	Mounting Type	Number of Positions	Contact Type	Pitch [x]	Pitch [x]	Color	Insulation Material	Contact Termination	Number of Positions
TE Connectivity AMP Connectors 1-925370-5	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	30	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-4	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	8	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-6	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	12	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 1-925370-0	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	20	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-3	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	6	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-2	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	4	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-8	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)		Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp	16
TE Connectivity AMP Connectors 925370-7	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	14	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-5	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	10	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp

Part

Operating Temperature [Min]

Operating Temperature [Max]

Connector Type

Number of Rows

Note

Row Spacing [x]

Row Spacing

Mounting Type

Number of Positions

Contact Type

Pitch [x]

Color

Insulation Material

Contact Termination

Number of Positions

TE Connectivity AMP Connectors

1-925370-5

-65 ░C

105 ░C

Receptacle

Contacts Not Included

0.1 in

2.54 mm

Free Hanging (In-Line)

Female Socket

2.54 mm

0.1 in

Green

Polyamide (PA66), Nylon 6/6, Glass Filled

Crimp

TE Connectivity AMP Connectors

925370-4

-65 ░C

105 ░C

Receptacle

Contacts Not Included

0.1 in

2.54 mm

Free Hanging (In-Line)

Female Socket

2.54 mm

0.1 in

Green

Polyamide (PA66), Nylon 6/6, Glass Filled

Crimp

TE Connectivity AMP Connectors

925370-6

-65 ░C

105 ░C

Receptacle

Contacts Not Included

0.1 in

2.54 mm

Free Hanging (In-Line)

Female Socket

2.54 mm

0.1 in

Green

Polyamide (PA66), Nylon 6/6, Glass Filled

Crimp

TE Connectivity AMP Connectors

1-925370-0

-65 ░C

105 ░C

Receptacle

Contacts Not Included

0.1 in

2.54 mm

Free Hanging (In-Line)

Female Socket

2.54 mm

0.1 in

Green

Polyamide (PA66), Nylon 6/6, Glass Filled

Crimp

TE Connectivity AMP Connectors

925370-3

-65 ░C

105 ░C

Receptacle

Contacts Not Included

0.1 in

2.54 mm

Free Hanging (In-Line)

Female Socket

2.54 mm

0.1 in

Green

Polyamide (PA66), Nylon 6/6, Glass Filled

Crimp

TE Connectivity AMP Connectors

925370-2

-65 ░C

105 ░C

Receptacle

Contacts Not Included

0.1 in

2.54 mm

Free Hanging (In-Line)

Female Socket

2.54 mm

0.1 in

Green

Polyamide (PA66), Nylon 6/6, Glass Filled

Crimp

TE Connectivity AMP Connectors

925370-8

-65 ░C

105 ░C

Receptacle

Contacts Not Included

0.1 in

2.54 mm

Free Hanging (In-Line)

Female Socket

2.54 mm

0.1 in

Green

Polyamide (PA66), Nylon 6/6, Glass Filled

Crimp

TE Connectivity AMP Connectors

925370-7

-65 ░C

105 ░C

Receptacle

Contacts Not Included

0.1 in

2.54 mm

Free Hanging (In-Line)

Female Socket

2.54 mm

0.1 in

Green

Polyamide (PA66), Nylon 6/6, Glass Filled

Crimp

TE Connectivity AMP Connectors

925370-5

-65 ░C

105 ░C

Receptacle

Contacts Not Included

0.1 in

2.54 mm

Free Hanging (In-Line)

Female Socket

2.54 mm

0.1 in

Green

Polyamide (PA66), Nylon 6/6, Glass Filled

Crimp
