925370-5

Active

TE Connectivity AMP Connectors

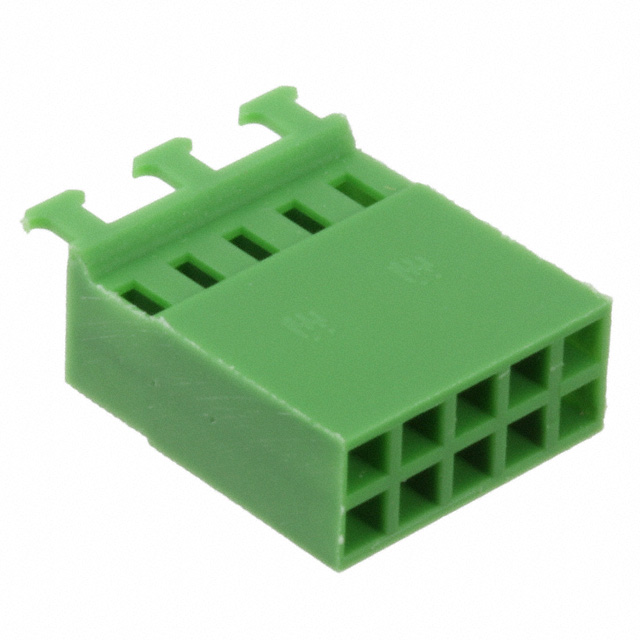

CONN RCPT HSG 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

925370-5

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 10POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.72
		10	$ 0.68
		25	$ 0.65
		50	$ 0.64
		100	$ 0.56
		250	$ 0.54
		500	$ 0.53

Description

General part information

925370 Series

10 Rectangular Connectors - Housings Receptacle Green 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Specification	925370-5	925370 Series

Color	Green	Green
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	10	4 - 30
Number of Positions	-	16
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows	Note	Row Spacing [x]	Row Spacing	Mounting Type	Number of Positions	Contact Type	Pitch [x]	Pitch [x]	Color	Insulation Material	Contact Termination	Number of Positions
TE Connectivity AMP Connectors 1-925370-5	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	30	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-4	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	8	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-6	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	12	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 1-925370-0	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	20	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-3	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	6	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-2	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	4	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-8	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)		Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp	16
TE Connectivity AMP Connectors 925370-7	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	14	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
TE Connectivity AMP Connectors 925370-5	-65 ░C	105 ░C	Receptacle	2	Contacts Not Included	0.1 in	2.54 mm	Free Hanging (In-Line)	10	Female Socket	2.54 mm	0.1 in	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp
