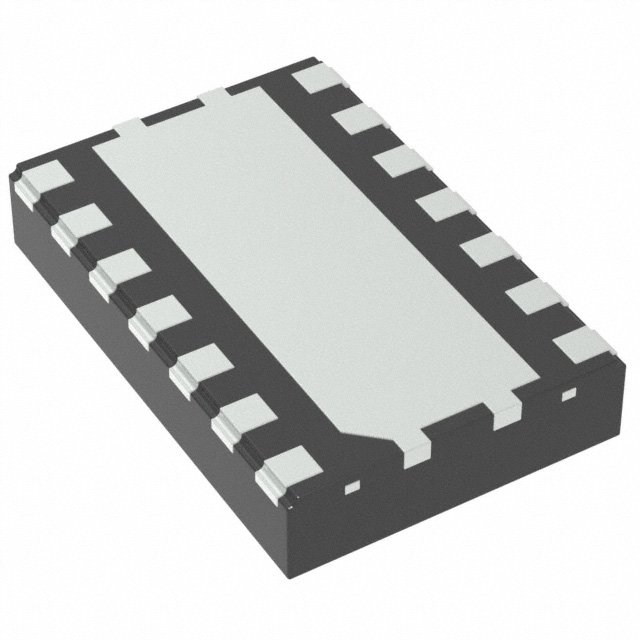

TLE9252VLCXUMA1
ActiveTHE TLE9252VLC IS A TRANSCEIVER DESIGNED FOR HS CAN NETWORKS WITH FLEXIBLE DATA-RATE UP TO 5 MBIT/S IN AUTOMOTIVE AND INDUSTRIAL APPLICATIONS.
Deep-Dive with AI
Search across all available documentation for this part.
TLE9252VLCXUMA1
ActiveTHE TLE9252VLC IS A TRANSCEIVER DESIGNED FOR HS CAN NETWORKS WITH FLEXIBLE DATA-RATE UP TO 5 MBIT/S IN AUTOMOTIVE AND INDUSTRIAL APPLICATIONS.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLE9252VLCXUMA1 |
|---|---|
| Data Rate | 5 MBd |
| Duplex | Half |
| Grade | Automotive |
| Mounting Type | Wettable Flank, Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-TDFN Exposed Pad |
| Protocol | CANbus |
| Qualification | AEC-Q100 |
| Receiver Hysteresis | 30 mV |
| Supplier Device Package | PG-TSON-14-3 |
| Type | Transceiver |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.34 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.42 | |||
| 250 | $ 1.34 | |||
| 500 | $ 1.29 | |||
| 1000 | $ 1.25 | |||
| 2500 | $ 1.21 | |||
| Digi-Reel® | 1 | $ 2.34 | ||
| 10 | $ 1.74 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.42 | |||
| 250 | $ 1.34 | |||
| 500 | $ 1.29 | |||
| 1000 | $ 1.25 | |||
| 2500 | $ 1.21 | |||
| Tape & Reel (TR) | 5000 | $ 1.10 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.43 | |
| 10 | $ 1.81 | |||
| 25 | $ 1.65 | |||
| 50 | $ 1.56 | |||
| 100 | $ 1.48 | |||
| 250 | $ 1.39 | |||
| 500 | $ 1.34 | |||
| 1000 | $ 1.30 | |||
Description
General part information
TLE9252 Series
The transceiver fulfills the requirements of the latest ISO standard and is fully compliant to ISO 11898-2 (2016) and SAE J2284-4/-511898-2 (2016). The wake-up capable TLE9252VLC is offering the latest Bus Wake-up Pattern (WUP) function with optimized filter time for worldwide OEM usage: 0.5μs < tFilter < 1.8μs. The non-low power modes (Normal-operating Mode and Receive-only Mode) and low power modes (Sleep Mode and Stand-by Mode) are optimized for reduced current consumption based on the required functionality. Even in Sleep Mode with a quiescent current below 25 μA over the full temperature range, the TLE9252VLC is able to detect a Wake-Up Pattern (WUP) on the HS CAN bus. The VIOvoltage reference input is used to enable 3.3 V as well as 5 V microcontroller interfaces. The TLE9252VSK is offered in standard DSO-14, while the TLE9252VLC is realized in tiny leadless TSON-14 package with Lead Tip Inspection (LTI) feature providing automated optical inspection (AOI) capability. This makes the TSON-14 packaged CAN FD transceiver perfectly suited for applications where tight space restrictions mandate the use of the smallest package possible.
