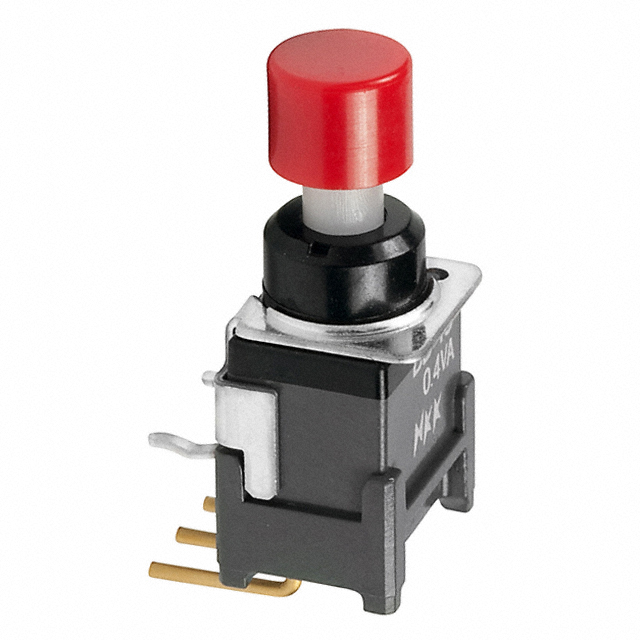

BB15AH-FC

Active

NKK Switches

PUSHBUTTON SWITCH, BB SERIES, SPDT, ON-(ON), ROUND, RED

Search across all available documentation for this part.

Active

NKK Switches

PUSHBUTTON SWITCH, BB SERIES, SPDT, ON-(ON), ROUND, RED

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Current Rating (Amps)	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - DC	Actuator Type	Actuator Marking	Electrical Life	Termination Style	Color - Actuator/Cap	Features	Type	Switch Function
NKK Switches BB15AH-FC	28 V	0.4 VA	SPDT	-30 ░C	85 °C	Through Hole Right Angle	28 V	Button Round	No Marking	50000 Cycles	PC Pin	Red	Antistatic	Standard	On-Mom
NKK Switches BB15AH-HB	28 V	0.4 VA	SPDT	-30 ░C	85 °C	Through Hole Right Angle	28 V	Button Round	No Marking	50000 Cycles	PC Pin	White	Antistatic	Standard	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole, Right Angle

Technical documentation and resources
