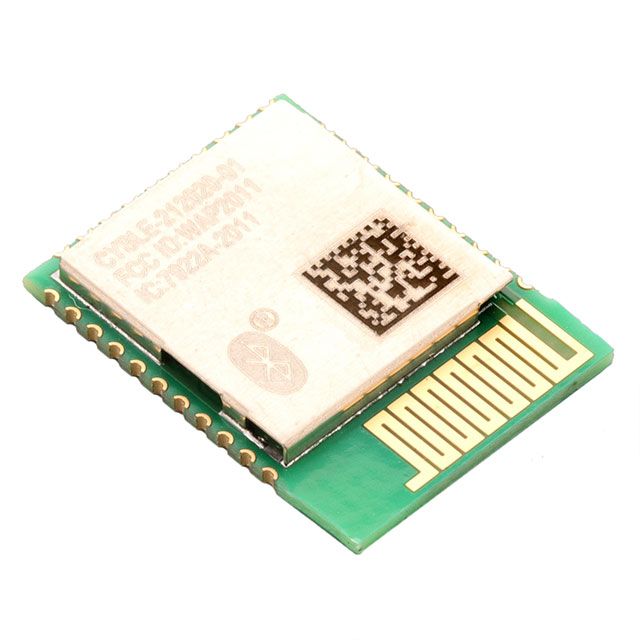

CYBLE-212020-01
ActiveInfineon Technologies
BLUETOOTH MODULE, V4.2, -87DBM
Deep-Dive with AI
Search across all available documentation for this part.
CYBLE-212020-01
ActiveInfineon Technologies
BLUETOOTH MODULE, V4.2, -87DBM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CYBLE-212020-01 |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 16.4 mA |
| Current - Transmitting | 15.6 mA |
| Data Rate | 8 Mbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 32 kB |
| Memory Size [custom] | 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 31-SMD Module |
| Power - Output | 3 dBm |
| Protocol | Bluetooth v4.2 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -91 dBm |
| Serial Interfaces | SPI, I2C, I2S, UART |
| Utilized IC / Part | CYBLE-212019-00, CYBLE-01211-00 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CYBLE-212020 Series
Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
