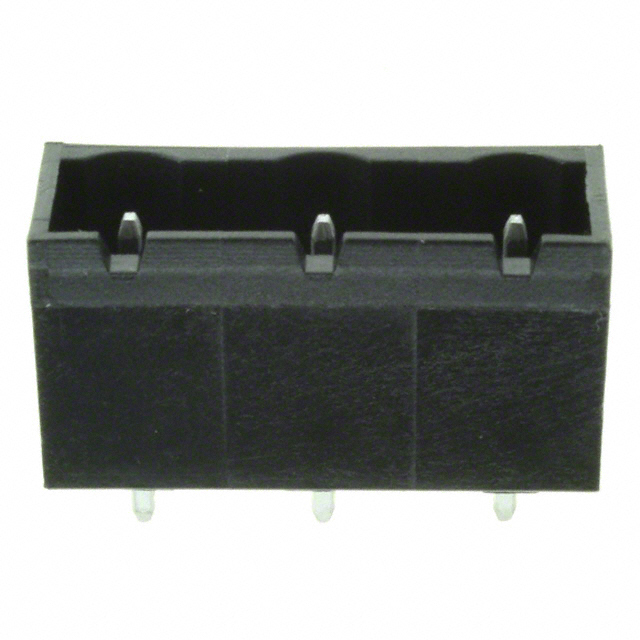

ELFH03450
ActiveAMPHENOL PCD
TERM BLOCK HDR 3POS VERT 7.62MM
Deep-Dive with AI
Search across all available documentation for this part.
ELFH03450
ActiveAMPHENOL PCD
TERM BLOCK HDR 3POS VERT 7.62MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ELFH03450 |
|---|---|
| Color | Black |
| Contact Material | Brass |
| Contact Mating Finish | Tin |
| Header Orientation | Vertical |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature | 105 C |
| Pitch [x] | 0.3 in |
| Pitch [x] | 7.62 mm |
| Positions Per Level | 3 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - UL | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.46 | |
| 10 | $ 1.02 | |||
| 25 | $ 0.96 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.86 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.61 | |||
| 5000 | $ 0.50 | |||
Description
General part information
ELFH034 Series
3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) Vertical Through Hole
Documents
Technical documentation and resources
No documents available
