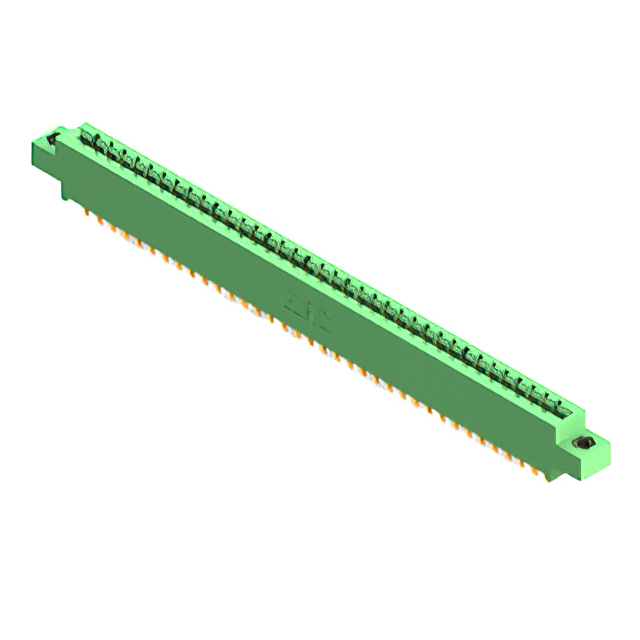

337-072-560-807

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-072-560-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	72
Number of Positions/Bay/Row [custom]	36
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

337-072 Series

...

Part	Features	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Flange Feature	Number of Rows	Pitch [x]	Pitch [x]	Material - Insulation	Number of Positions/Bay/Row [custom]	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Color	Termination Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Mounting Type	Termination	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 337-072-500-858	Card Guides	Female	-40 °C	105 ░C	Cantilever	4-40 Threaded Insert Top Mount Opening	2	0.156 in	3.96 mm	Polyester Thermoplastic	36	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Green	2	72	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	Solder Eyelet(s)
EDAC Inc. 337-072-556-807	Card Extender	Female	-40 °C	105 ░C	Cantilever	M3 Threaded Insert Top Mount Opening	2	0.156 in	3.96 mm	Polyester Thermoplastic	36	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Green	2	72	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Board Edge Straddle Mount	Solder
EDAC Inc. 337-072-500-202		Female	-40 °C	105 ░C	Cantilever	Flush Mount Top Opening Unthreaded	2	0.156 in	3.96 mm	Polyester Thermoplastic	36	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Green	2	72	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	Solder Eyelet(s)	3.25 mm	0.128 "
EDAC Inc. 337-072-523-858		Female	-40 °C	105 ░C	Cantilever	4-40 Threaded Insert Top Mount Opening	2	0.156 in	3.96 mm	Polyester Thermoplastic	36	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Green	2	72	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	Solder
EDAC Inc. 337-072-560-208	Card Extender	Female	-40 °C	105 ░C	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	2	0.156 in	3.96 mm	Polyester Thermoplastic	36	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Green	2	72	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Board Edge Straddle Mount	Solder
EDAC Inc. 337-072-542-802		Female	-40 °C	105 ░C	Cantilever		2	0.156 in	3.96 mm	Polyester Thermoplastic	36	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Green	2	72	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	Wire Wrap			3.25 mm	0.128 in
EDAC Inc. 337-072-521-812		Female	-40 °C	105 ░C	Cantilever	Side Mount Opening Unthreaded	2	0.156 in	3.96 mm	Polyester Thermoplastic	36	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Green	2	72	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	Solder			3.25 mm	0.128 in
EDAC Inc. 337-072-500-803		Female	-40 °C	105 ░C	Cantilever	Floating Bobbin Top Mount Opening	2	0.156 in	3.96 mm	Polyester Thermoplastic	36	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Green	2	72	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	Solder Eyelet(s)	2.95 mm	0.116 in
EDAC Inc. 337-072-560-807	Card Extender	Female	-40 °C	105 ░C	Cantilever	M3 Threaded Insert Top Mount Opening	2	0.156 in	3.96 mm	Polyester Thermoplastic	36	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Green	2	72	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Board Edge Straddle Mount	Solder
EDAC Inc. 337-072-520-878	Card Guides	Female	-40 °C	105 ░C	Cantilever	4-40 Threaded Insert Top Mount Opening	2	0.156 in	3.96 mm	Polyester Thermoplastic	36	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Green	2	72	10 Áin	0.25 Ám	Non Specified - Dual Edge	Dual	Through Hole	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 16.97
Newark	Each	1	$ 18.96
		100	$ 13.31
		250	$ 10.02
		500	$ 8.10
		1000	$ 6.94

Description

General part information

337-072 Series

72 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
