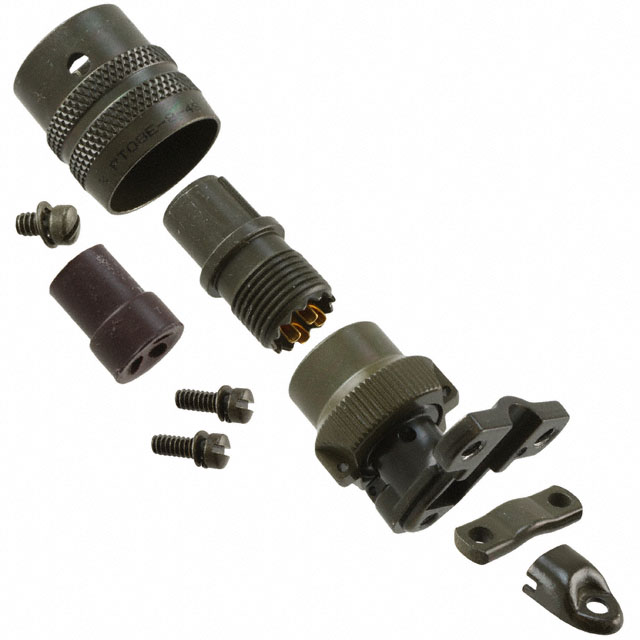

PT08E-8-4S(SR)
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT08E-8-4S(SR)
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT08E-8-4S(SR) | PT08E Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Olive Drab Cadmium, Aluminum, Olive Drab Chromate over Cadmium |
| Cable Opening | - | 20.22 mm |
| Cable Opening | - | 0.796 in |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Strain Relief, Coupling Nut | Cable Clamp, Strain Relief, Coupling Nut, Backshell |
| Ingress Protection | Environment Sealed | Environment Sealed, Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 4 | 2 - 61 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W, Y |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 8-4 | 8-4, 14-5, 8-3, 12-8, 10-6, 12-3, 10-2, 8-2 |
| Shell Size - Insert | - | 14 - 24 |
| Shell Size - Insert | - | 18 - 61 |
| Shell Size - Insert | - | 19 |
| Shell Size - Insert | - | 14 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 86.70 | |
| 10 | $ 67.47 | |||
| 25 | $ 61.39 | |||
| 50 | $ 59.49 | |||
PT08E Series
CONN PLUG FMALE 4P GOLD SLDR CUP
| Part | Contact Material | Primary Material | Mounting Type | Orientation | Fastening Type | Contact Finish - Mating | Qualification | Color | Applications | Shell Material | Connector Type | Features | Shell Finish | Ingress Protection | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Number of Positions | Shielding | Backshell Material, Plating | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Cable Opening [custom] | Cable Opening [custom] | Voltage Rating | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT08E-8-4S(SR) | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Female Sockets, Plug | Cable Clamp, Coupling Nut, Strain Relief | Olive Drab Chromate over Cadmium | Environment Sealed | 8-4 | -55 °C | 125 °C | Neoprene | 4 | Unshielded | Aluminum, Olive Drab Cadmium | |||||||
Amphenol Industrial Operations PT08E-22-36S(152) | Copper Alloy | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | MIL-DTL-26482 Series I | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Female Sockets, Plug | Coupling Nut | Environment Sealed | -55 °C | 125 °C | Neoprene | 36 | Unshielded | 22 | 36 | ||||||||||||
Amphenol Industrial Operations PT08E14-5P-SR | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Male Pins, Plug | Olive Drab Chromate over Cadmium | Environment Resistant | 14-5 | -55 °C | 125 °C | Neoprene | Unshielded | Aluminum, Olive Drab Cadmium | |||||||||
Amphenol Industrial Operations PT08E8-3S-SR | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Female Sockets, Plug | Backshell, Cable Clamp, Coupling Nut, Strain Relief | Olive Drab Chromate over Cadmium | Environment Resistant | 8-3 | -55 °C | 125 °C | Neoprene | Unshielded | Aluminum, Olive Drab Cadmium | 20.22 mm | 0.796 in | 600 VAC | |||||
Amphenol Industrial Operations PT08E-14-5S(SR) | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Female Sockets, Plug | Cable Clamp, Coupling Nut, Strain Relief | Olive Drab Chromate over Cadmium | Environment Sealed | 14-5 | -55 °C | 125 °C | Neoprene | Unshielded | Aluminum, Olive Drab Cadmium | ||||||||
Amphenol Industrial Operations PT08E-12-10S(SR) | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Female Sockets, Plug | Cable Clamp, Coupling Nut, Strain Relief | Olive Drab Chromate over Cadmium | Environment Sealed | -55 °C | 125 °C | Neoprene | 10 | Unshielded | Aluminum, Olive Drab Cadmium | ||||||||
Amphenol Industrial Operations PT08E-14-18S(SR) | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Female Sockets, Plug | Cable Clamp, Coupling Nut, Strain Relief | Olive Drab Chromate over Cadmium | Environment Sealed | -55 °C | 125 °C | Neoprene | 18 | Unshielded | Aluminum, Olive Drab Cadmium | 14 | 18 | ||||||
Amphenol Industrial Operations PT08E8-4PN | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Aluminum | Male Pins, Plug | Backshell, Coupling Nut | Olive Drab Chromate over Cadmium | Environment Resistant | 8-4 | -55 °C | 125 °C | Neoprene | 4 | Unshielded | Aluminum, Olive Drab Chromate over Cadmium | 600 VAC | ||||||
Amphenol Industrial Operations PT08E12-8P-SR | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Aluminum | Male Pins, Plug | Olive Drab Chromate over Cadmium | Environment Resistant | 12-8 | -55 °C | 125 °C | Neoprene | 8 | Unshielded | Aluminum, Olive Drab Cadmium | ||||||||
Amphenol Industrial Operations PT08E-10-6P(SR) | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Male Pins, Plug | Cable Clamp, Coupling Nut, Strain Relief | Olive Drab Chromate over Cadmium | Environment Sealed | 10-6 | -55 °C | 125 °C | Neoprene | 6 | Unshielded | Aluminum, Olive Drab Cadmium | |||||||
Amphenol Industrial Operations PT08E-14-19SW(SR) | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | W | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Female Sockets, Plug | Cable Clamp, Coupling Nut, Strain Relief | Olive Drab Chromate over Cadmium | Environment Resistant | -55 °C | 125 °C | Neoprene | 19 | Unshielded | 19 | 14 | |||||||
Amphenol Industrial Operations PT08E-10-6S(SR) | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Female Sockets, Plug | Cable Clamp, Coupling Nut, Strain Relief | Olive Drab Chromate over Cadmium | Environment Sealed | 10-6 | -55 °C | 125 °C | Neoprene | 6 | Unshielded | Aluminum, Olive Drab Cadmium | |||||||
Amphenol Industrial Operations PT08E-12-3SY(SR) | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | Y | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Female Sockets, Plug | Cable Clamp, Coupling Nut, Strain Relief | Olive Drab Chromate over Cadmium | Environment Sealed | 12-3 | -55 °C | 125 °C | Neoprene | Unshielded | |||||||||
Amphenol Industrial Operations PT08E10-6SW-SR | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | W | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Aluminum | Female Sockets, Plug | Olive Drab Chromate over Cadmium | Environment Resistant | 10-6 | -55 °C | 125 °C | Neoprene | 6 | Unshielded | Aluminum, Olive Drab Cadmium | ||||||||
Amphenol Industrial Operations PT08E10-2P-SR | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Aluminum | Male Pins, Plug | Olive Drab Chromate over Cadmium | Environment Resistant | 10-2 | -55 °C | 125 °C | Neoprene | 2 | Unshielded | Aluminum, Olive Drab Cadmium | ||||||||
Amphenol Industrial Operations PT08E10-6S-SR | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Aluminum | Female Sockets, Plug | Olive Drab Chromate over Cadmium | Environment Resistant | 10-6 | -55 °C | 125 °C | Neoprene | 6 | Unshielded | Aluminum, Olive Drab Cadmium | ||||||||
Amphenol Industrial Operations PT08E-24-61P(SR) | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Male Pins, Plug | Cable Clamp, Coupling Nut, Strain Relief | Olive Drab Chromate over Cadmium | Environment Sealed | -55 °C | 125 °C | Neoprene | 61 | Unshielded | Aluminum, Olive Drab Cadmium | 24 | 61 | ||||||
Amphenol Industrial Operations PT08E8-2S-SR | Copper Alloy | Metal | Free Hanging (In-Line), Right Angle | N | Bayonet Lock | Gold | MIL-DTL-26482 Series I | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Female Sockets, Plug | Olive Drab Chromate over Cadmium | Environment Resistant | 8-2 | -55 °C | 125 °C | Neoprene | 2 | Unshielded | Aluminum, Olive Drab Cadmium |
Description
General part information
PT08E Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
