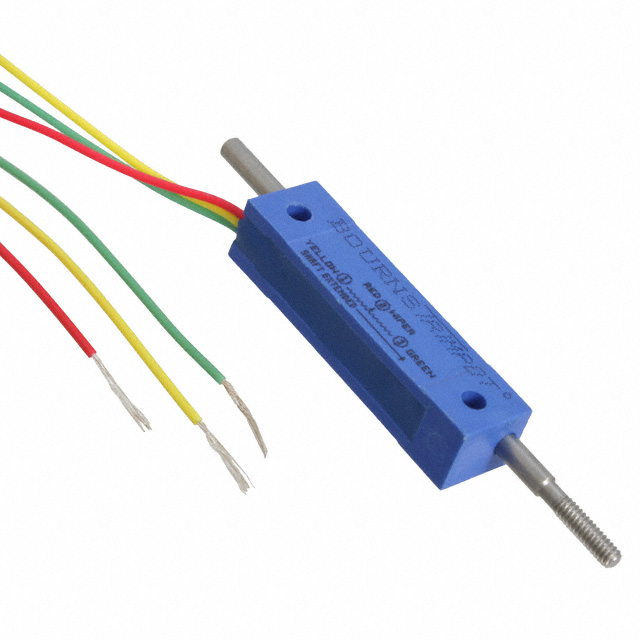

3046L-3-103

Active

Bourns Inc.

SENSOR LINEAR 8.89MM WIRE LEADS

Search across all available documentation for this part.

Active

Bourns Inc.

SENSOR LINEAR 8.89MM WIRE LEADS

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Resistance	Output	Technology	Mounting Type	Resistance Tolerance	Actuator Type	Linear Range [Max]	Linear Range [Max]	For Measuring	Package / Case	Linearity
Bourns Inc. 3046L-1-502	-55 °C	125 °C	Wire Leads	5 kOhms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.15 in	3.81 mm	Linear Position	Module Threaded Wire Leads	5 %
Bourns Inc. 3046L-2-102	-55 °C	125 °C	Wire Leads	1000 Ohms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.25 in	6.35 mm	Linear Position	Module Threaded Wire Leads	5 %
Bourns Inc. 3046L-3-103	-55 °C	125 °C	Wire Leads	10000 Ohms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.35 in	8.89 mm	Linear Position	Module Threaded Wire Leads	5 %
Bourns Inc. 3046L-3-502	-55 °C	125 °C	Wire Leads	5 kOhms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.35 in	8.89 mm	Linear Position	Module Threaded Wire Leads	5 %
Bourns Inc. 3046L-3-203	-55 °C	125 °C	Wire Leads	20 kOhms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.35 in	8.89 mm	Linear Position	Module Threaded Wire Leads	5 %
Bourns Inc. 3046L-1-252	-55 °C	125 °C	Wire Leads	2.5 kOhms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.15 in	3.81 mm	Linear Position	Module Threaded Wire Leads	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Resistive Sensor Linear Position Round Shaft Wire Leads
