345-084-542-558
ActiveEDAC Inc.

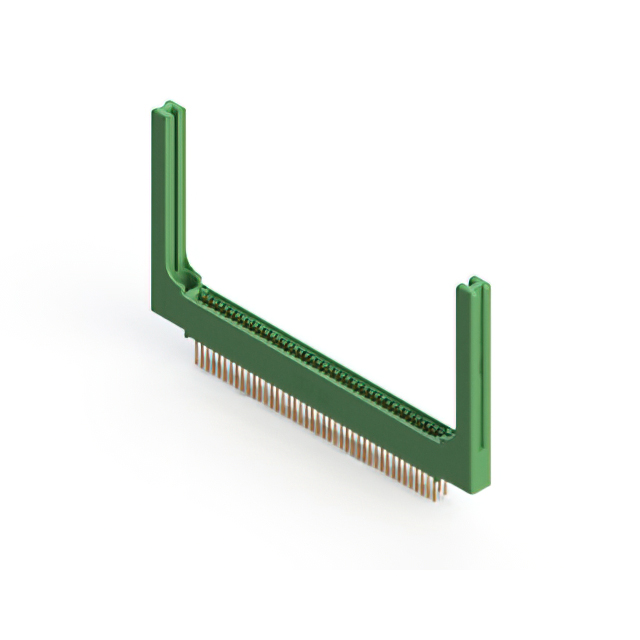

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 84 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-084-542-558
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 84 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-084-542-558 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 84 |
| Number of Positions/Bay/Row [custom] | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
345-084 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Read Out | Number of Rows | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Contact Type | Contact Material | Material - Insulation | Termination Rows | Card Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Flange Feature | Gender | Number of Positions | Termination | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Through Hole | Dual | 2 | 2.54 mm | 0.1 in | 42 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Copper Alloy | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Female | 84 | Solder Eyelet(s) | |||
EDAC Inc. | -40 °C | 105 ░C | Through Hole Right Angle | Dual | 2 | 2.54 mm | 0.1 in | 42 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Copper Alloy | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Female | 84 | Solder | |||
EDAC Inc. | -40 °C | 105 ░C | Through Hole | Dual | 2 | 2.54 mm | 0.1 in | 42 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Copper Alloy | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Female | 84 | Wire Wrap | Card Guides | ||||
EDAC Inc. | -40 °C | 105 ░C | Through Hole | Dual | 2 | 2.54 mm | 0.1 in | 42 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Copper Alloy | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Female | 84 | Solder Eyelet(s) | Card Guides | ||||
EDAC Inc. | -40 °C | 105 ░C | Board Edge Straddle Mount | Dual | 2 | 2.54 mm | 0.1 in | 42 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Copper Alloy | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Female | 84 | Solder | Card Extender | 3.96 mm | 0.156 in | ||
EDAC Inc. | -40 °C | 105 ░C | Through Hole | Dual | 2 | 2.54 mm | 0.1 in | 42 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Copper Alloy | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Female | 84 | Wire Wrap | Card Guides | ||||
EDAC Inc. | -40 °C | 105 ░C | Through Hole | Dual | 2 | 2.54 mm | 0.1 in | 42 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Copper Alloy | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Female | 84 | Solder | |||||
EDAC Inc. | -40 °C | 105 ░C | Board Edge Straddle Mount | Dual | 2 | 2.54 mm | 0.1 in | 42 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Copper Alloy | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Female | 84 | Solder Eyelet(s) | Card Extender | |||||
EDAC Inc. | -40 °C | 105 ░C | Through Hole | Dual | 2 | 2.54 mm | 0.1 in | 42 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Copper Alloy | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | Female | 84 | Solder | 2.95 mm | 0.116 in | |||
EDAC Inc. | -40 °C | 105 ░C | Through Hole | Dual | 2 | 2.54 mm | 0.1 in | 42 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Copper Alloy | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Female | 84 | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-084 Series
84 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
