PA-DSO-2803-D420-28/2

Active

Logical Systems Inc.

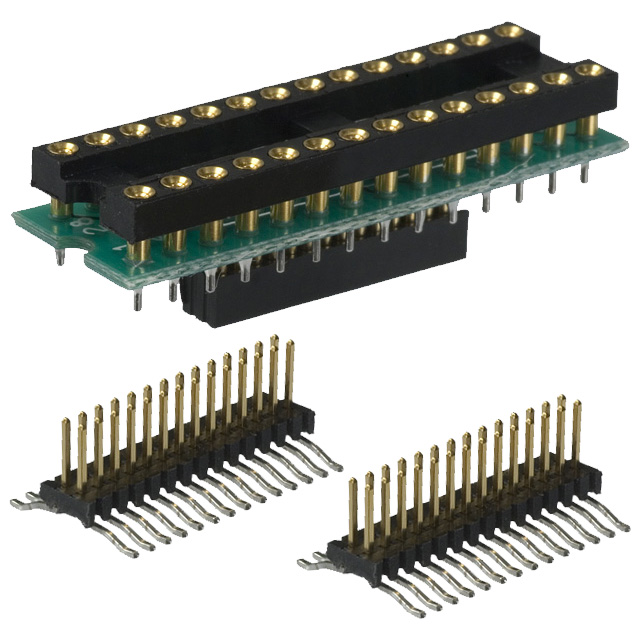

ADAPTER 28DIP BD W/2 28SO PLUGS

Search across all available documentation for this part.

Active

Logical Systems Inc.

ADAPTER 28DIP BD W/2 28SO PLUGS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PA-DSO-2803-D420-28/2	PA-DSO Series

Module/Board Type	Socket Module - DIP	Socket Module - DIP, ZIF Socket
Utilized IC / Part	PIC16C55(A), 72(A), 63(A), F872-876, 773, 73A(B), 62A(B), 642, 31, PIC18C242, 76, 252, Z86C(E)(L)30, 66, 57(C), PIC14000	PIC16C55(A), 72(A), 63(A), F872-876, 773, 73A(B), 62A(B), 642, 31, PIC18C242, 76, 252, Z86C(E)(L)30, 66, 57(C), PIC14000, PIC16C505, CE623-CE625, 08, PIC16C52, Z8E000, HV540, F84(A), 16, 71, 620(A), 28, 558, Z86C(E)(L)02-04, 54(A)(C), F83, 06, 554, 61, 621, 710-717, 58A(B), 56(A)

ADAPTER 28DIP BD W/2 28SO PLUGS

Part	Module/Board Type	Utilized IC / Part
Logical Systems Inc. PA-DSO-2803-D420-28/2	Socket Module - DIP	252, 31, 57(C), 62A(B), 63(A), 642, 66, 72(A), 73A(B), 76, 773, F872-876, PIC14000, PIC16C55(A), PIC18C242, Z86C(E)(L)30
Logical Systems Inc. PA-DSO-2806Z	ZIF Socket
Logical Systems Inc. PA-DSO-1403Z-D250-14/2	ZIF Socket	PIC16C505
Logical Systems Inc. PA-DSO-1803Z-D420-18/2	ZIF Socket	06, 08, 16, 28, 54(A)(C), 554, 558, 56(A), 58A(B), 61, 620(A), 621, 71, 710-717, CE623-CE625, F83, F84(A), HV540, PIC16C52, Z86C(E)(L)02-04, Z8E000
Logical Systems Inc. PA-DSO-2003	Socket Module - DIP
Logical Systems Inc. PA-DSO-1403-D250-14/2	Socket Module - DIP	PIC16C505

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.57

General part information

PIC14000,PIC16C55(A),57(C),62A(B),57(C),62A(B),63(A),66,72(A),73A(B),76,642,773,F872-876,PIC18C242,252,Z86C(E)(L)30,31 and more - Socket Module - DIP
