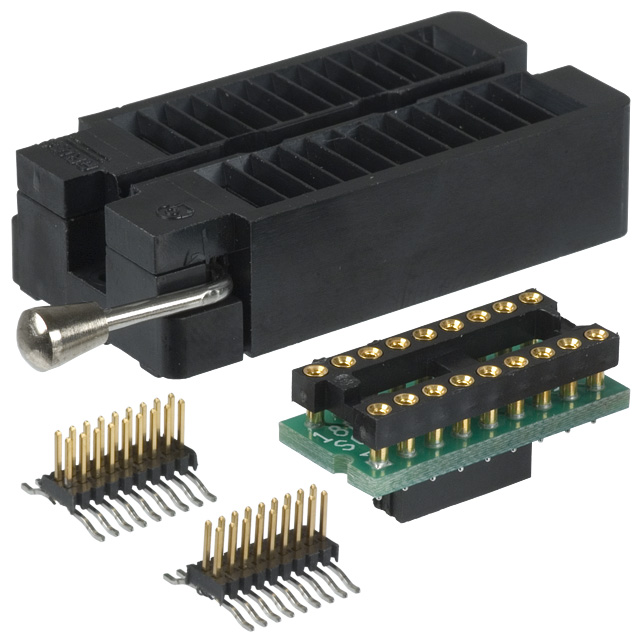

ADAPTER 18 ZIF BD W/18SO PLUGS

Search across all available documentation for this part.

Active

Logical Systems Inc.

ADAPTER 18 ZIF BD W/18SO PLUGS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.54

General part information

PIC16C52,54(A)(C),56(A),58A(B),61,554,558,621,620(A),CE623-CE625,71,710-717,F83,F84(A),HV540, Z86C(E)(L)02-04,06,08,16,28,Z8E000 - ZIF Socket

Technical documentation and resources

Specification	PA-DSO-1803Z-D420-18/2	PA-DSO Series

Module/Board Type	ZIF Socket	Socket Module - DIP, ZIF Socket
Utilized IC / Part	CE623-CE625, 08, PIC16C52, Z8E000, HV540, F84(A), 16, 71, 620(A), 28, 558, Z86C(E)(L)02-04, 54(A)(C), F83, 06, 554, 61, 621, 710-717, 58A(B), 56(A)	PIC16C55(A), 72(A), 63(A), F872-876, 773, 73A(B), 62A(B), 642, 31, PIC18C242, 76, 252, Z86C(E)(L)30, 66, 57(C), PIC14000, PIC16C505, CE623-CE625, 08, PIC16C52, Z8E000, HV540, F84(A), 16, 71, 620(A), 28, 558, Z86C(E)(L)02-04, 54(A)(C), F83, 06, 554, 61, 621, 710-717, 58A(B), 56(A)

Part	Module/Board Type	Utilized IC / Part
Logical Systems Inc. PA-DSO-2803-D420-28/2	Socket Module - DIP	252, 31, 57(C), 62A(B), 63(A), 642, 66, 72(A), 73A(B), 76, 773, F872-876, PIC14000, PIC16C55(A), PIC18C242, Z86C(E)(L)30
Logical Systems Inc. PA-DSO-2806Z	ZIF Socket
Logical Systems Inc. PA-DSO-1403Z-D250-14/2	ZIF Socket	PIC16C505
Logical Systems Inc. PA-DSO-1803Z-D420-18/2	ZIF Socket	06, 08, 16, 28, 54(A)(C), 554, 558, 56(A), 58A(B), 61, 620(A), 621, 71, 710-717, CE623-CE625, F83, F84(A), HV540, PIC16C52, Z86C(E)(L)02-04, Z8E000
Logical Systems Inc. PA-DSO-2003	Socket Module - DIP
Logical Systems Inc. PA-DSO-1403-D250-14/2	Socket Module - DIP	PIC16C505
