LCMXO2-256ZE-3SG32C

Active

LATTICE SEMICONDUCTOR

FIELD PROGRAMMABLE GATE ARRAY, 256-CELL, CMOS, QFN-32

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

FIELD PROGRAMMABLE GATE ARRAY, 256-CELL, CMOS, QFN-32

Technical Specifications

Parameters and characteristics for this part

Specification	LCMXO2-256ZE-3SG32C

Mounting Type	Surface Mount
Number of I/O	21 I/O
Number of LABs/CLBs	32
Number of Logic Elements/Cells	256
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

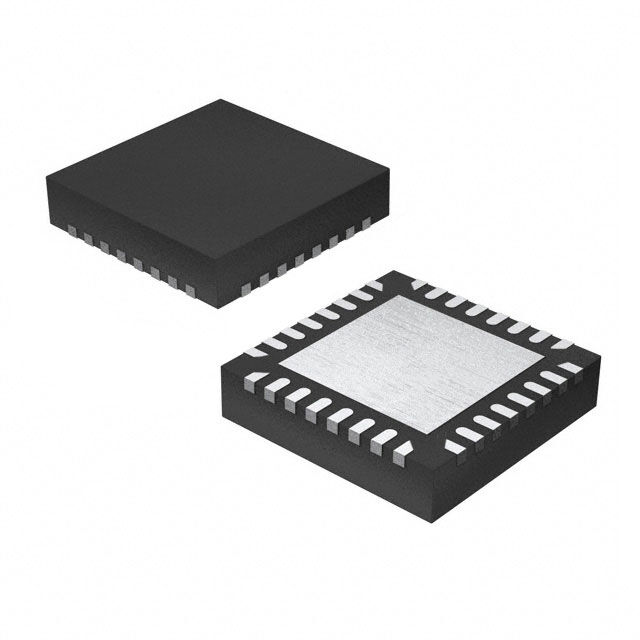

Package / Case	32-UFQFN Exposed Pad
Supplier Device Package	32-QFN (5x5)

Part	Number of Logic Elements/Cells	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of LABs/CLBs	Mounting Type	Number of I/O	Voltage - Supply [Min]	Voltage - Supply [Max]
LATTICE SEMICONDUCTOR LCMXO2-256ZE-3MG132I	256	132-LFBGA CSPBGA	100 °C	-40 C	132-CSPBGA (8x8)	32	Surface Mount	55
LATTICE SEMICONDUCTOR LCMXO2-256ZE-1SG32C	256	32-UFQFN Exposed Pad	85 °C	0 °C	32-QFN (5x5)	32	Surface Mount	21 I/O
LATTICE SEMICONDUCTOR LCMXO2-256HC-5SG32I	256	32-UFQFN Exposed Pad	100 °C	-40 C	32-QFN (5x5)	32	Surface Mount	21 I/O	2.375 V	3.465 V
LATTICE SEMICONDUCTOR LCMXO2-256HC-4SG32C	256	32-UFQFN Exposed Pad	85 °C	0 °C	32-QFN (5x5)	32	Surface Mount	21 I/O	2.375 V	3.465 V
LATTICE SEMICONDUCTOR LCMXO2-256HC-5MG132C	256	132-LFBGA CSPBGA	85 °C	0 °C	132-CSPBGA (8x8)	32	Surface Mount	55	2.375 V	3.465 V
LATTICE SEMICONDUCTOR LCMXO2-256HC-5SG48I	256	48-VFQFN Exposed Pad	100 °C	-40 C	48-QFNS (7x7)	32	Surface Mount	40	2.375 V	3.465 V
LATTICE SEMICONDUCTOR LCMXO2-256ZE-2MG132I	256	132-LFBGA CSPBGA	100 °C	-40 C	132-CSPBGA (8x8)	32	Surface Mount	55
LATTICE SEMICONDUCTOR LCMXO2-256ZE-3SG32C	256	32-UFQFN Exposed Pad	85 °C	0 °C	32-QFN (5x5)	32	Surface Mount	21 I/O
LATTICE SEMICONDUCTOR LCMXO2-256HC-6UMG64I	256	64-VFBGA	100 °C	-40 C	64-UCBGA (4x4)	32	Surface Mount	44	2.375 V	3.465 V
LATTICE SEMICONDUCTOR LCMXO2-256HC-6SG48C	256	48-VFQFN Exposed Pad	85 °C	0 °C	48-QFNS (7x7)	32	Surface Mount	40	2.375 V	3.465 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MachXO2 Field Programmable Gate Array (FPGA) IC 21 256 32-UFQFN Exposed Pad
