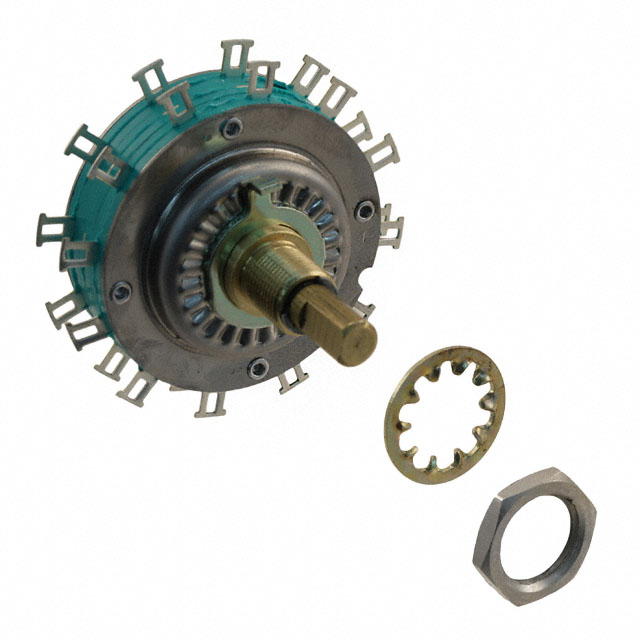

C7D0124N-C

Active

ELECTROSWITCH

SWITCH ROTARY 24POS 500MA 125V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 24POS 500MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	C7D0124N-C

Actuator Length [x]	14.29 mm
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	15 °
Circuit per Deck	SP24T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	500 mA, 1 A
Depth Behind Panel	20.6 mm
Index Stops	Continuous
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions	24
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Voltage Rating - DC	Voltage Rating - AC	Actuator Length [x]	Contact Finish	Contact Timing	Panel Cutout Dimensions [diameter]	Index Stops	Circuit per Deck	Current Rating (Amps)	Actuator Type [diameter]	Actuator Type	Number of Decks [custom]	Depth Behind Panel	Termination Style	Number of Poles per Deck	Angle of Throw	Contact Material	Number of Positions
ELECTROSWITCH C7D0124S-C	28 V	125 V	14.29 mm	Silver	Shorting	9.78 mm	Continuous	SP24T	1 A 500 mA	6.35 mm	Flatted	1	20.6 mm	Solder Lug	1	15 °	Brass	24
ELECTROSWITCH C7D0124N-C	28 V	125 V	14.29 mm	Silver	Non-Shorting	9.78 mm	Continuous	SP24T	1 A 500 mA	6.35 mm	Flatted	1	20.6 mm	Solder Lug	1	15 °	Brass	24
