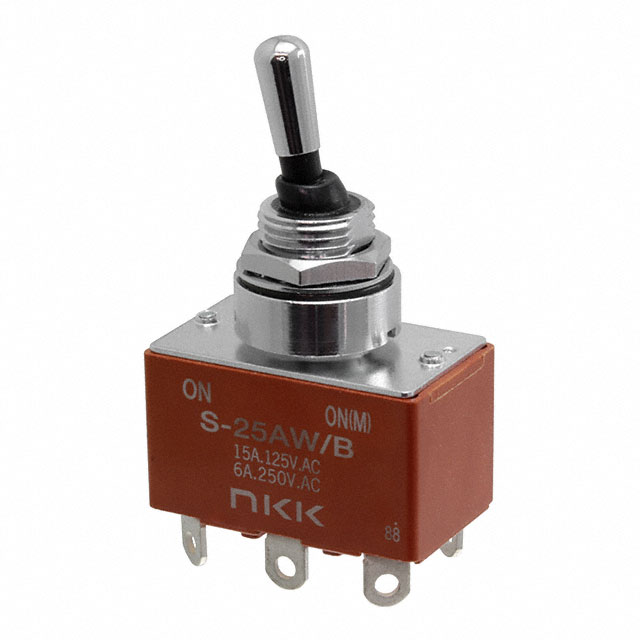

S25AWB

Active

NKK Switches

TOGGLE SWITCH, IP68, ON-NONE-(ON), DPDT, NON ILLUMINATED, S SERIES, 20 A, PANEL MOUNT

Search across all available documentation for this part.

Active

NKK Switches

TOGGLE SWITCH, IP68, ON-NONE-(ON), DPDT, NON ILLUMINATED, S SERIES, 20 A, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	S25AWB

Actuator Length [x]	17.5 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	20 A, 15 A
Electrical Life	25000 Steps
Features	Waterproof Boot
Illumination	Non-Illuminated
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Illumination	Features	Current Rating (Amps)	Actuator Length [x]	Circuit	Bushing Thread	Bushing Thread	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Type
NKK Switches S25AWB	Non-Illuminated	Waterproof Boot	15 A 20 A	17.5 mm	DPDT	M12	1 x 1	Solder Lug	125 V	30 V	25000 Steps	70 °C	-30 ░C	IP68 - Dust Tight Waterproof	On-Mom	12.5 mm	Standard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
