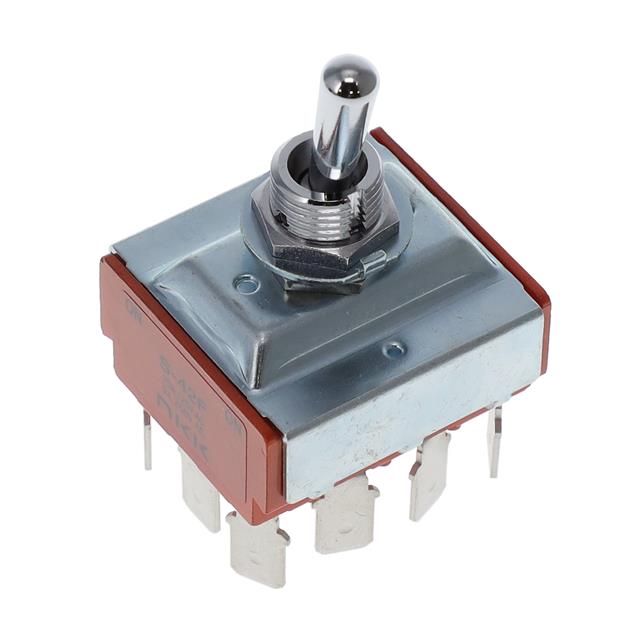

S42F/CUL

Active

NKK Switches

MEDIUM CAPACITY STANDARD SIZE TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

MEDIUM CAPACITY STANDARD SIZE TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	S42F/CUL

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	4PDT
Current Rating (Amps)	20 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Voltage Rating - AC	Actuator Length [x]	Current Rating (Amps)	Bushing Thread	Bushing Thread	Actuator Material	Actuator Type	Circuit	Switch Function	Termination Style	Voltage Rating - DC	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Electrical Life	Illumination	Panel Cutout Dimensions [diameter]
NKK Switches S42F/CUL	125 V	17.5 mm	20 A	M12	1 x 1	Brass Chrome Plated	Standard Round	4PDT	On-On	Quick Connect - 0.250" (6.3mm)	30 V	-10 °C	158 °F	25000 Steps	Non-Illuminated	12.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch 4PDT Panel Mount
