Q5-3X-1-01-SS25M

Active

HEAT SHRINK TUBING & SLEEVES DUALWALL ADHESVLINE 1" 25M SPOOL

Active

HEAT SHRINK TUBING & SLEEVES DUALWALL ADHESVLINE 1" 25M SPOOL

Description

General part information

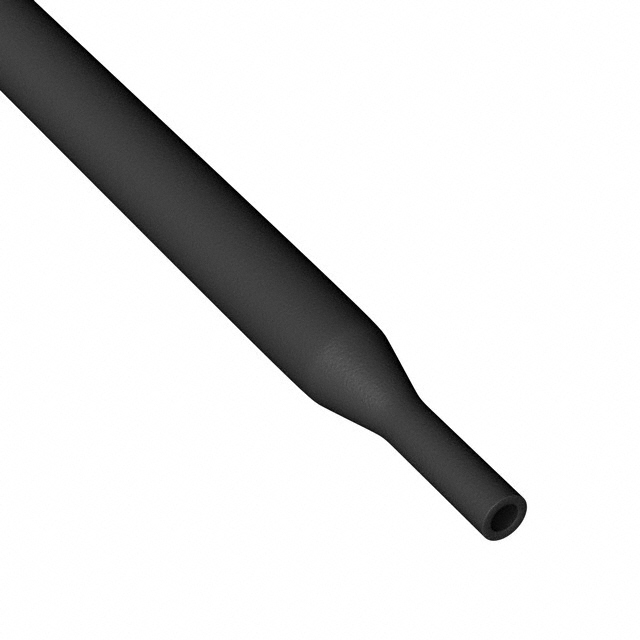

Heat Shrink Tubing, Flexible 0.945" (24.00mm) 3 to 1 Black 82.0' (25.0m)

Parameters and characteristics for this part

Specification	Q5-3X-1-01-SS25M

Color	Black
Features	Flame Retardant, Adhesive Lined
Inner Diameter - Recovered	0.315 in
Inner Diameter - Supplied	0.945 in
Length	82 ft
Material	Polyolefin (PO)
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Recovered Wall Thickness	0.094 in
Shelf Life	60 Months
Shrink Temperature	80 °C
Shrinkage Ratio	3
Storage/Refrigeration Temperature (Maximum)	104 °F
Storage/Refrigeration Temperature (Minimum)	-50 °F
Type	Flexible, Tubing

Part	Inner Diameter - Supplied	Material	Recovered Wall Thickness	Operating Temperature (Max)	Operating Temperature (Min)	Shrink Temperature	Shelf Life	Shrinkage Ratio	Color	Inner Diameter - Recovered	Features	Length	Type	Storage/Refrigeration Temperature (Minimum)	Storage/Refrigeration Temperature (Maximum)
Qualtek Q5-3X-3/4-01-QB6IN-12	0.75 in	Polyolefin (PO)	0.084 in	125 °C	-55 °C	80 °C	60 Months	3	Black	0.236 in	Adhesive Lined Flame Retardant	0.5 ft	Flexible Tubing	-50 °F	104 °F
Qualtek Q5-3X-1-01-SS25M	0.945 in	Polyolefin (PO)	0.094 in	125 °C	-55 °C	80 °C	60 Months	3	Black	0.315 in	Adhesive Lined Flame Retardant	82 ft	Flexible Tubing	-50 °F	104 °F
Qualtek Q5-3X-3/8-01-QB48IN-25	0.354 in	Polyolefin (PO)	0.055 in	125 °C	-55 °C	80 °C	60 Months	3	Black	0.118 in	Adhesive Lined Flame Retardant	48 in	Flexible Tubing	-50 °F	104 °F
