12052709

Active

Bopla Enclosures

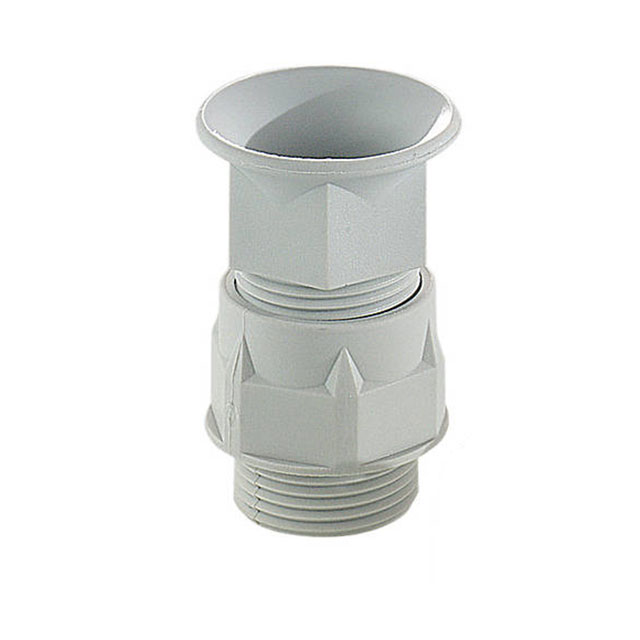

CABLE GLAND 6-8MM PG9 POLYAMIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

12052709

Active

Bopla Enclosures

CABLE GLAND 6-8MM PG9 POLYAMIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12052709	12052 Series

Color	Gray	Gray
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-30 - -20 C
Outside Cable Diameter (Max)	-	14 - 24 mm
Outside Cable Diameter (Max)	-	0.551 - 0.945 in
Outside Cable Diameter (Max) [Max] [diameter]	8 mm	6 - 18.01 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in	0.236 - 0.709 in
Outside Cable Diameter (Min)	-	0.157 in
Outside Cable Diameter (Min)	-	4 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm	6 - 18.01 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in	0.236 - 0.709 in
Thread Length	8 mm	8 - 11 mm
Thread Length	0.315 in	0.315 - 0.433 in
Thread Size	PG9	PG7, PG11, PG9, PG29, PG13, PG21, PG16
Type	Cable Gland	Cable Gland

12052 Series

CABLE GLAND 4-6MM PG7 POLYAMIDE

Part	Ingress Protection	Type	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Color	Material	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Bopla Enclosures 12052609	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-20 C	0.236 in	6 mm	PG7	Gray	Polyamide (PA), Nylon	8 mm	0.315 in	0.157 in	4 mm
Bopla Enclosures 12052809	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-30 ░C	0.394 "	10 mm	PG11	Gray	Polyamide (PA), Nylon	8 mm	0.315 in			8 mm	0.315 in
Bopla Enclosures 12052709	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-20 C	0.315 in	8 mm	PG9	Gray	Polyamide (PA), Nylon	8 mm	0.315 in			6 mm	0.236 in
Bopla Enclosures 12052409	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-30 ░C			PG29	Gray	Polyamide (PA), Nylon	11 mm	0.433 in			18.01 mm	0.709 in	24 mm	0.945 in
Bopla Enclosures 12052909	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-30 ░C	0.472 in	12 mm	PG13	Gray	Polyamide (PA), Nylon	9 mm	0.354 in			10 mm	0.394 in
Bopla Enclosures 12052109	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-20 C	0.472 in	12 mm	PG13	Gray	Polyamide (PA), Nylon	9 mm	0.354 in			10 mm	0.394 in
Bopla Enclosures 12052309	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-20 C	0.709 in	18.01 mm	PG21	Gray	Polyamide (PA), Nylon	11 mm	0.433 in			14 mm	0.551 in
Bopla Enclosures 12052009	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-30 ░C	0.394 "	10 mm	PG11	Gray	Polyamide (PA), Nylon	8 mm	0.315 in			8 mm	0.315 in
Bopla Enclosures 12052209	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-20 C			PG16	Gray	Polyamide (PA), Nylon	10 mm	0.394 in			12 mm	0.472 in	14 mm	0.551 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 2.28

Description

General part information

12052 Series

Cable Gland Polyamide (PA), Nylon PG9 Gray
