51-261.022

Active

EAO

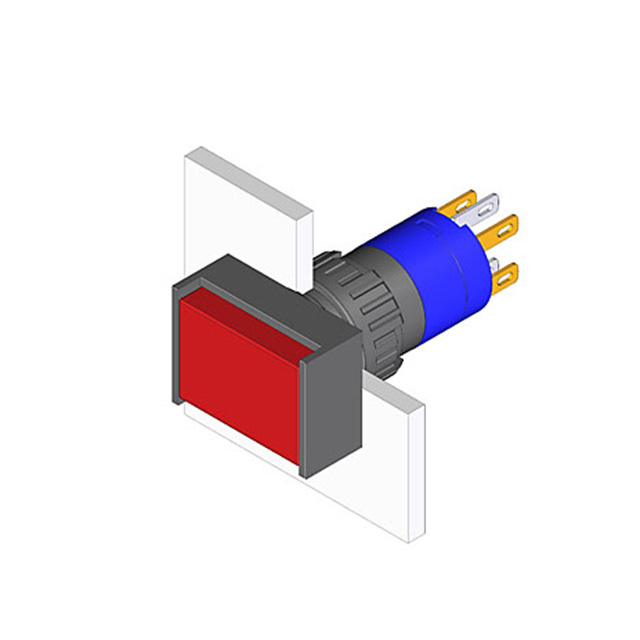

SWITCH PUSH BUTTON N.O./N.C. DPST RECTANGULAR BUTTON 5A 250VAC MAINTAINED PANEL MOUNT SOLDER

Search across all available documentation for this part.

Active

EAO

SWITCH PUSH BUTTON N.O./N.C. DPST RECTANGULAR BUTTON 5A 250VAC MAINTAINED PANEL MOUNT SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	51-261.022	51-261 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)	Rectangular, Button (Not Included)
Circuit	DPST-NO/NC	DPST-NO/NC
Current Rating (Amps)	5 A	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Solder Lug, Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

SWITCH PB DPST-NO/NC 5A 250V

Part	Termination Style	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Type	Ingress Protection	Mechanical Life	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	Type	Actuator Marking	Switch Function	Termination Style	Termination Style
EAO 51-261.025	Solder Lug	16 mm	55 °C	-25 °C	DPST-NO/NC	Rectangular, Button (Not Included)	IP65 - Dust Tight, Water Resistant	1000000 Cycles	Panel Mount, Front	5 A	250 V	Standard	No Marking	Off-On, On-Off
EAO 51-261.022	Quick Connect, Solder	16 mm	55 °C	-25 °C	DPST-NO/NC	Rectangular, Button (Not Included)	IP65 - Dust Tight, Water Resistant	1000000 Cycles	Panel Mount, Front	5 A	250 V	Standard	No Marking	Off-On, On-Off	0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
