AH5772-P-B
ObsoleteDiodes Inc

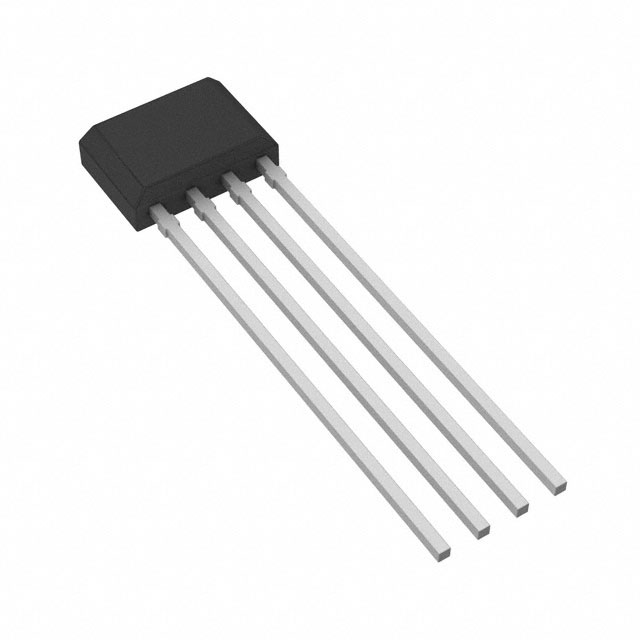

ANALOG CIRCUIT, 1 FUNC, PSIP4, TO94, 4 PIN
Deep-Dive with AI
Search across all available documentation for this part.
AH5772-P-B
ObsoleteDiodes Inc
ANALOG CIRCUIT, 1 FUNC, PSIP4, TO94, 4 PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AH5772-P-B |
|---|---|
| Applications | Fan Motor Driver |
| Current - Output | 1 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | On/Off |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (2) |
| Package / Case | 4-SSIP |
| Supplier Device Package | TO-94 |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 18 V |
| Voltage - Load [Min] | 2.4 V |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 2.4 V |
