325-053-520-108

Active

EDAC Inc.

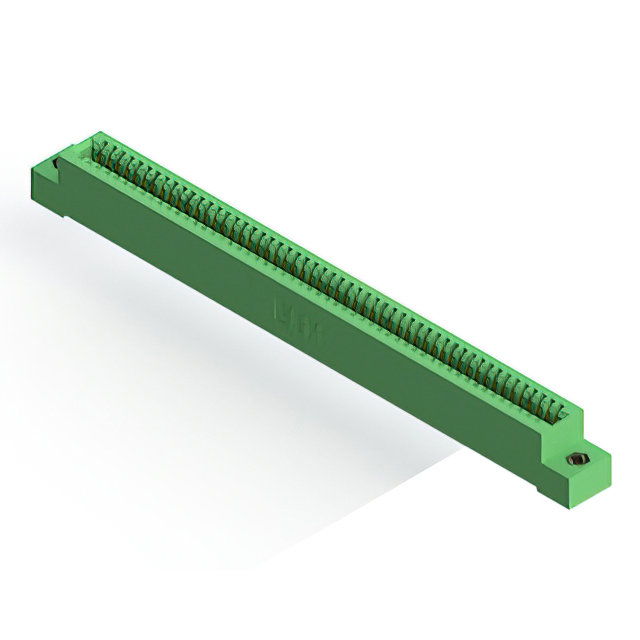

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 53 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

325-053-520-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 53 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-053-520-108

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	53
Number of Positions/Bay/Row [custom]	53
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

325-053 Series

Part	Flange Feature	Card Type	Number of Positions	Number of Rows	Read Out	Contact Finish Thickness	Contact Finish Thickness	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish	Termination Rows	Card Thickness	Card Thickness	Termination	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Material - Insulation	Contact Material	Mounting Type	Gender	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-053-500-108	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	53	1	Single	10 Áin	0.25 Ám	Green	125 °C	-65 ░C	Cantilever	Gold	1	3.18 mm	0.125 in	Solder Eyelet(s)	53	2.54 mm	0.1 in	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Female
EDAC Inc. 325-053-500-109	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	53	1	Single	10 Áin	0.25 Ám	Green	125 °C	-65 ░C	Cantilever	Gold	1	3.18 mm	0.125 in	Solder Eyelet(s)	53	2.54 mm	0.1 in	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Female	0.16 in	4.06 mm
EDAC Inc. 325-053-500-107	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	53	1	Single	10 Áin	0.25 Ám	Green	125 °C	-65 ░C	Cantilever	Gold	1	3.18 mm	0.125 in	Solder Eyelet(s)	53	2.54 mm	0.1 in	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Female
EDAC Inc. 325-053-520-108	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	53	1	Single	10 Áin	0.25 Ám	Green	125 °C	-65 ░C	Cantilever	Gold	1	3.18 mm	0.125 in	Solder	53	2.54 mm	0.1 in	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Female
EDAC Inc. 325-053-540-108	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	53	1	Single	10 Áin	0.25 Ám	Green	125 °C	-65 ░C	Cantilever	Gold	1	3.18 mm	0.125 in	Wire Wrap	53	2.54 mm	0.1 in	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Female
EDAC Inc. 325-053-540-101		Non Specified - Single Edge	53	1	Single	10 Áin	0.25 Ám	Green	125 °C	-65 ░C	Cantilever	Gold	1	3.18 mm	0.125 in	Wire Wrap	53	2.54 mm	0.1 in	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Female
EDAC Inc. 325-053-540-109	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	53	1	Single	10 Áin	0.25 Ám	Green	125 °C	-65 ░C	Cantilever	Gold	1	3.18 mm	0.125 in	Wire Wrap	53	2.54 mm	0.1 in	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Female	0.16 in	4.06 mm
EDAC Inc. 325-053-500-101		Non Specified - Single Edge	53	1	Single	10 Áin	0.25 Ám	Green	125 °C	-65 ░C	Cantilever	Gold	1	3.18 mm	0.125 in	Solder Eyelet(s)	53	2.54 mm	0.1 in	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Female
EDAC Inc. 325-053-520-107	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	53	1	Single	10 Áin	0.25 Ám	Green	125 °C	-65 ░C	Cantilever	Gold	1	3.18 mm	0.125 in	Solder	53	2.54 mm	0.1 in	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Female
EDAC Inc. 325-053-540-107	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	53	1	Single	10 Áin	0.25 Ám	Green	125 °C	-65 ░C	Cantilever	Gold	1	3.18 mm	0.125 in	Wire Wrap	53	2.54 mm	0.1 in	Diallyl Phthalate (DAP)	Copper Alloy	Through Hole	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.10
Newark	Each	1	$ 17.17
		100	$ 12.97
		250	$ 10.79
		500	$ 9.28
		1000	$ 7.23

Description

General part information

325-053 Series

53 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
