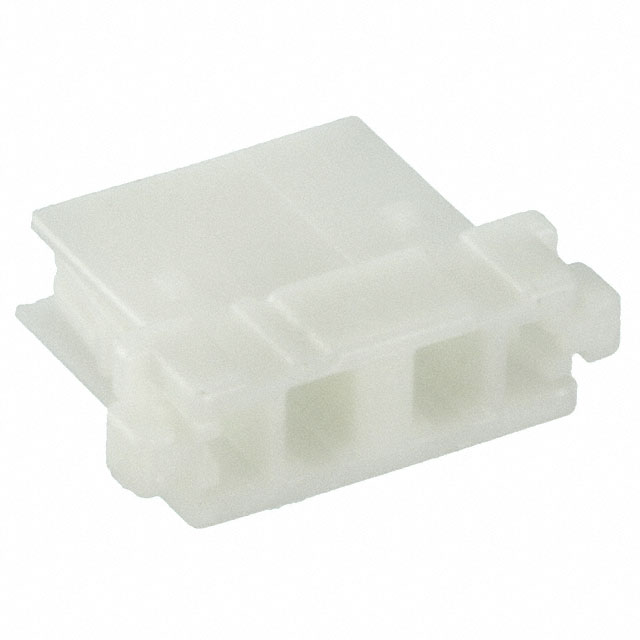

LEXR-02V-S
ActiveJST Sales America Inc.
CONN SSL RCPT HSG 2POS CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
LEXR-02V-S
ActiveJST Sales America Inc.
CONN SSL RCPT HSG 2POS CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LEXR-02V-S |
|---|---|
| Current Rating (Amps) | 3 A |
| Housing Color | Natural |
| Housing Material | Glass Filled, Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Style | Board to Cable/Wire |
| Termination | Crimp |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.27 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 2000 | $ 0.12 | |||
| 4000 | $ 0.12 | |||
Description
General part information
LEXR-02V Series
SSL Connector 2 Position Receptacle Housing for Socket Contact Board to Cable/Wire 0.098" (2.50mm) Crimp
