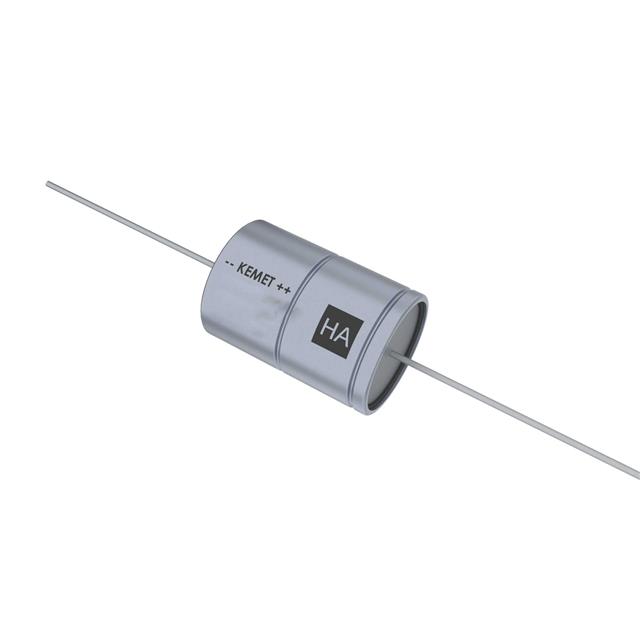

PHA227MKP3780ME4
ActiveKEMET
HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 780 ΜF, ± 20%, 63 V, AXIAL LEADED, 0.006 OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PHA227MKP3780ME4
ActiveKEMET
HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 780 ΜF, ± 20%, 63 V, AXIAL LEADED, 0.006 OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PHA227MKP3780ME4 |
|---|---|
| Applications | Automotive |
| Capacitance | 780 µF |
| ESR (Equivalent Series Resistance) | 145 mOhm |
| Features | High Vibration |
| Lifetime @ Temp. | 8000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Can, Axial |
| Ratings | AEC-Q200 |
| Ripple Current @ High Frequency | 34.9 A |
| Ripple Current @ Low Frequency | 6.98 A |
| Size / Dimension [diameter] | 16.2 mm |
| Size / Dimension [diameter] | 0.638 in |
| Size / Dimension [x] | 1.366 " |
| Size / Dimension [x] | 34.7 mm |
| Tolerance | 20 % |
| Type | Hybrid |
| Voltage - Rated | 63 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.14 | |
| 10 | $ 8.79 | |||
| 528 | $ 6.20 | |||
| 1056 | $ 5.75 | |||
Description
General part information
PHA227M Series
780 µF 63 V Aluminum - Polymer Capacitors Axial, Can 145mOhm 8000 Hrs @ 125°C
