06IB2S

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	06IB2S

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29 mm
Panel Cutout Dimensions [y]	60 mm
Switch Features	Switch On-Off
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Fuse Holder, Drawer	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Mounting Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Switch Features	Current Rating - Appliance Inlet	Filter Type	Connector Style	Accomodates a Fuse	Approval Agency	Connector Type
Delta Electronics 06IB2S	Fuse Holder	60 mm	29 mm	Quick Connect	Flange, Panel Mount	115 VAC	250 VAC	Switch On-Off	6 A	Filtered (EMI, RFI) - Commercial	IEC 320-C14		CSA, UL, VDE	Receptacle, Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

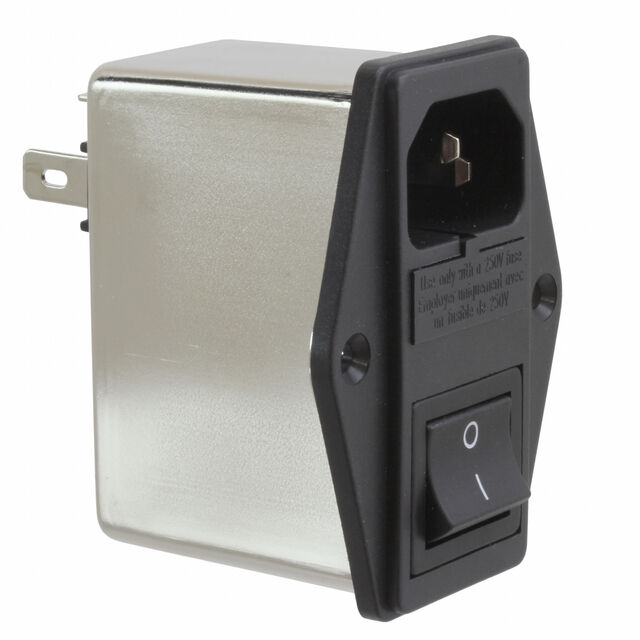

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange

Technical documentation and resources
