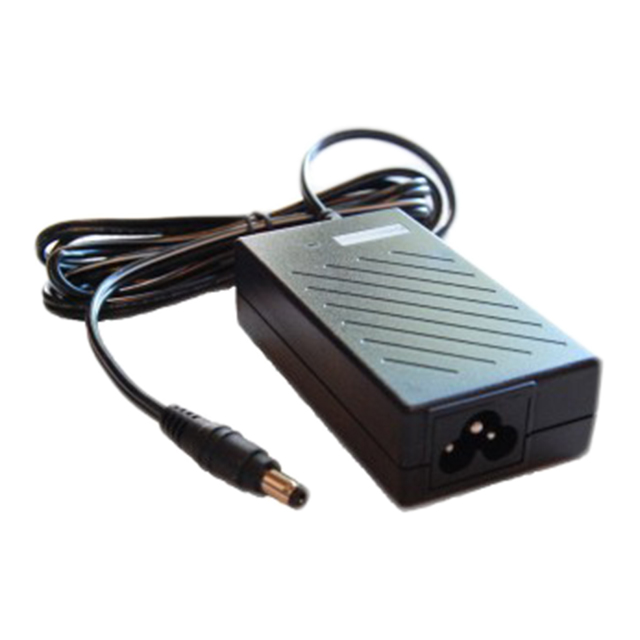

MWA050012A-10A

Active

Inventus Power

AC/DC DESKTOP ADAPTER 12V 51W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 12V 51W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 51 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MWA050012A-10A	MWA050012 Series

Applications	Medical	Medical
Approval Agency	CB, CE, cTUVus	CB, CE, cTUVus
Cord Length	1.22 m	1.22 m
Cord Length	48 in	48 in
Current - Output (Max) [Max]	4.25 A	4.25 A
Efficiency	Level V	Level V
Form	Desktop (Class I)	Desktop (Class I), Desktop (Class II)
Input Connector	IEC 320-C6	IEC 320-C6, IEC 320-C8
Input Type	Cord	Cord
No Load Power Consumption	300 mW	300 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	51 W	51 W
Region Utilized	International	International
Size / Dimension [x]	3.53 "	3.53 "
Size / Dimension [x]	89.6 mm	89.6 - 89.7 mm
Size / Dimension [y]	48.8 mm	48.8 mm
Size / Dimension [y]	1.92 in	1.92 in
Size / Dimension [z]	0.99 "	0.99 "
Size / Dimension [z]	25.2 mm	25.1 - 25.2 mm
Voltage - Output	12 V	12 V

AC/DC DESKTOP ADAPTER 12V 51W

Part	Input Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Cord Length	Cord Length	Input Type	Polarization	Form	Voltage - Output	No Load Power Consumption	Applications	Power (Watts)	Approval Agency	Current - Output (Max) [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized
Inventus Power MWA050012A-10A	IEC 320-C6	3.53 "	0.99 "	89.6 mm	25.2 mm	48.8 mm	1.92 in	1.22 m	48 in	Cord	Positive Center	Desktop (Class I)	12 V	300 mW	Medical	51 W	CB, CE, cTUVus	4.25 A	Level V	60 °C	0 °C	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	International
Inventus Power MWA050012B-10A	IEC 320-C8	3.53 "	0.99 "	89.7 mm	25.1 mm	48.8 mm	1.92 in	1.22 m	48 in	Cord	Positive Center	Desktop (Class II)	12 V	300 mW	Medical	51 W	CE, cTUVus	4.25 A	Level V	60 °C	0 °C				International
