SSL1.00SV50

Active

Techflex

EXPANDABLE SLEEVE 1" X 50' SILV

Search across all available documentation for this part.

Active

Techflex

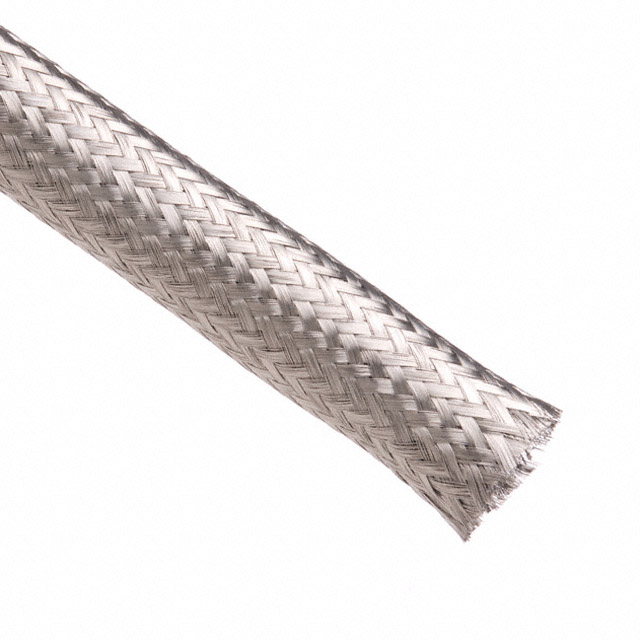

EXPANDABLE SLEEVE 1" X 50' SILV

Technical Specifications

Parameters and characteristics for this part

Specification	SSL1.00SV50

Abrasion Protection	Abrasion Resistant
Color	Silver
Diameter - Inside, Expanded [diameter]	33.35 mm
Diameter - Inside, Expanded [diameter]	1.313 in
Diameter - Inside, Non-Expanded [diameter]	1 in
Diameter - Inside, Non-Expanded [diameter]	25.4 mm
Environment Protection	UV Resistant
Features	Chemical Resistant, Tight Weave, Clean Cut
Heat Protection	Flame Resistant, Heat Resistant
Length	15.24 m
Length [x]	50 ft
Liquid Protection	Salt Water Resistant
Material	Stainless Steel (SS), 304, Halogen Free
Material Flammability Rating	Non Flammable
Type	Sleeve
Type Attributes	Expandable
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

EXPANDABLE SLEEVE 1" X 50' SILV

Part	Material Flammability Rating	Type Attributes	Liquid Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Features	Wall Thickness [custom]	Wall Thickness [custom]	Color	Environment Protection	Material	Heat Protection	Abrasion Protection	Type	Length	Length [x]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]
Techflex SSL1.00SV50	Non Flammable	Expandable	Salt Water Resistant	1 in	25.4 mm	Chemical Resistant, Clean Cut, Tight Weave	0.025 in	0.64 mm	Silver	UV Resistant	Stainless Steel (SS), 304, Halogen Free	Flame Resistant, Heat Resistant	Abrasion Resistant	Sleeve	15.24 m	50 ft	33.35 mm	1.313 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 294.53

General part information

Sleeve X 50.00' (15.24m) Silver
