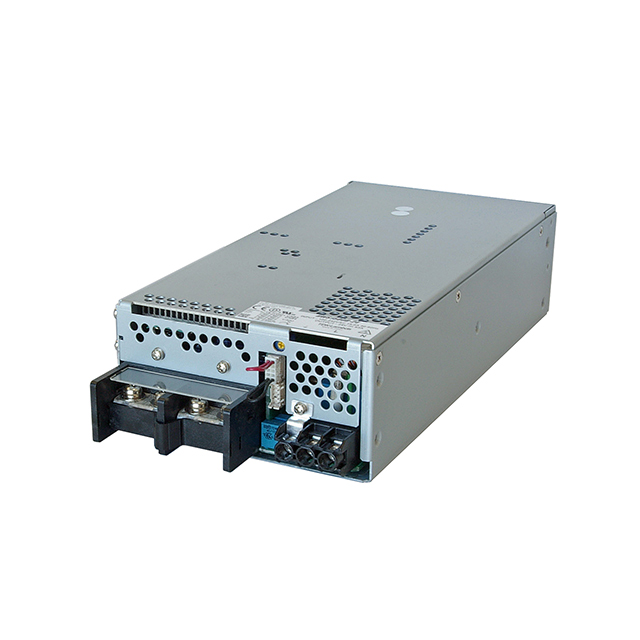

RWS1000B-48/ME
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.008 KW, 48 V, 21 A
Deep-Dive with AI
Search across all available documentation for this part.
RWS1000B-48/ME
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.008 KW, 48 V, 21 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RWS1000B-48/ME |
|---|---|
| Applications | Medical |
| Approval Agency | CE |
| Current - Output 1 | 21 A |
| Efficiency | 88 % |
| Features | Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 1.008 kW |
| Size / Dimension [x] | 7.8 in |
| Size / Dimension [x] | 198.1 mm |
| Size / Dimension [y] | 5 in |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [z] | 63 mm |
| Size / Dimension [z] | 2.48 in |
| Type | Enclosed |
| Voltage - Input [Max] | 340 VDC, 265 VAC |
| Voltage - Input [Min] | 120 VDC, 85 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
RWS1000 Series
| Part | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Number of Outputs | Current - Output 1 | Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation | Power (Watts) | Efficiency | Approval Agency | Features | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Applications | Current - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDK-LAMBDA | 24 V | 63 mm | 7.8 in | 2.48 in | 5 in | 198.1 mm | 127 mm | 1 | 42 A | Conformal Coated Enclosed | 85 VAC 120 VDC | 265 VAC 340 VDC | 4000 V | 1.008 kW | 88 % | CE | Adjustable Output DC Input Capable Remote Sense Universal Input | 60 °C | -20 °C | Chassis Mount | ITE (Commercial) | |
TDK-LAMBDA | 12 V | 63 mm | 7.8 in | 2.48 in | 5 in | 198.1 mm | 127 mm | 1 | 84 A | Enclosed | 85 VAC 120 VDC | 265 VAC 340 VDC | 4000 V | 1.008 kW | 85 % | CE | Remote Sense Universal Input | 60 °C | -20 °C | Chassis Mount | Medical | |
TDK-LAMBDA | 12 V | 63 mm | 7.8 in | 2.48 in | 5 in | 198.1 mm | 127 mm | 1 | 84 A | Enclosed | 85 VAC 120 VDC | 265 VAC 340 VDC | 4000 V | 1.008 kW | 85 % | CE | Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input | 60 °C | -20 °C | Chassis Mount | ITE (Commercial) | |
TDK-LAMBDA | 15 V | 63 mm | 7.8 in | 2.48 in | 5 in | 198.1 mm | 127 mm | 1 | 67 A | Enclosed | 85 VAC 120 VDC | 265 VAC 340 VDC | 4000 V | 1005 W | 85 % | CE | Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input | 60 °C | -20 °C | Chassis Mount | ITE (Commercial) | |
TDK-LAMBDA | 48 V | 63 mm | 7.8 in | 2.48 in | 5 in | 198.1 mm | 127 mm | 1 | 21 A | Enclosed | 85 VAC 120 VDC | 265 VAC 340 VDC | 4000 V | 1.008 kW | 88 % | CE | Remote Sense Universal Input | 60 °C | -20 °C | Chassis Mount | Medical | |
TDK-LAMBDA | 36 V | 63 mm | 7.8 in | 2.48 in | 5 in | 198.1 mm | 127 mm | 1 | Enclosed | 85 VAC 120 VDC | 265 VAC 340 VDC | 4000 V | 1.008 kW | 88 % | CE | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 60 °C | -20 °C | Chassis Mount | ITE (Commercial) | 28 A | |
TDK-LAMBDA | 24 V | 63 mm | 7.8 in | 2.48 in | 5 in | 198.1 mm | 127 mm | 1 | 42 A | Enclosed | 85 VAC 120 VDC | 265 VAC 340 VDC | 4000 V | 1.008 kW | 88 % | CE | Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input | 60 °C | -20 °C | Chassis Mount | ITE (Commercial) | |
TDK-LAMBDA | 36 V | 63 mm | 7.8 in | 2.48 in | 5 in | 198.1 mm | 127 mm | 1 | Conformal Coated Enclosed | 85 VAC 120 VDC | 265 VAC 340 VDC | 4000 V | 1.008 kW | 88 % | CE | Adjustable Output DC Input Capable Remote Sense Universal Input | 60 °C | -20 °C | Chassis Mount | ITE (Commercial) | 28 A | |
TDK-LAMBDA | 15 V | 63 mm | 7.8 in | 2.48 in | 5 in | 198.1 mm | 127 mm | 1 | 67 A | Enclosed | 85 VAC 120 VDC | 265 VAC 340 VDC | 4000 V | 1005 W | 85 % | CE | Adjustable Output DC Input Capable Remote On/Off Universal Input | 60 °C | -20 °C | Chassis Mount | ITE (Commercial) | |
TDK-LAMBDA | 36 V | 63 mm | 7.8 in | 2.48 in | 5 in | 198.1 mm | 127 mm | 1 | Enclosed | 85 VAC 120 VDC | 265 VAC 340 VDC | 4000 V | 1.008 kW | 88 % | CE | Adjustable Output DC Input Capable Load Sharing Remote Sense Universal Input | 60 °C | -20 °C | Chassis Mount | ITE (Commercial) | 28 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RWS1000 Series
The RWS1000B48/ME from TDK-Lambda is a RWS1000-B series single output medical power supply. Approved by ES60601-1, CSA60601, EN60601-1 safety standards.
