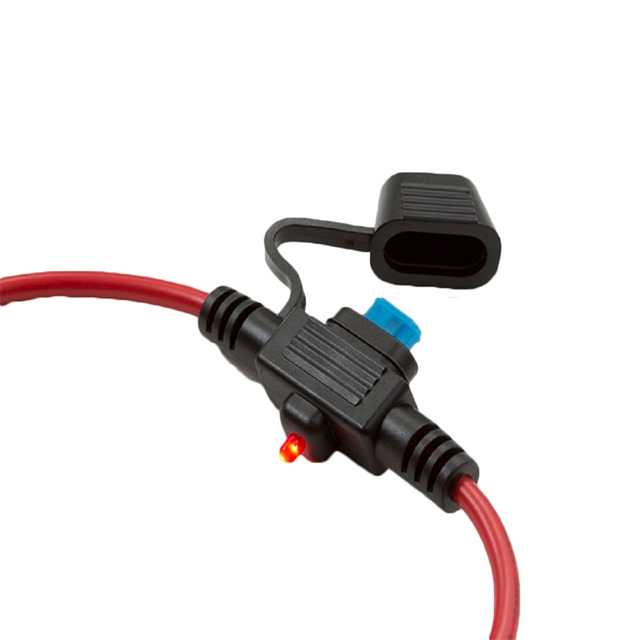

Specification	LPT-04B-I-16R

Contact Finish	Tin
Contact Material	Brass
Current Rating	15 A
For Use With/Related Products	APT, ANT
Fuse Type	Blade
Fuseholder Type	Holder
Mounting Type	Free Hanging (In-Line)
Number of Circuits	1
Termination Style	Wire Leads
Voltage	24 V

LPT-04B Series

Part	Fuse Type	Contact Finish	For Use With/Related Products	Contact Material	Mounting Type	Number of Circuits	Termination Style	Fuseholder Type	Current Rating	Voltage
OptiFuse LPT-04B-I-16R	Blade	Tin	ANT APT	Brass	Free Hanging (In-Line)	1	Wire Leads	Holder	15 A	24 V
OptiFuse LPT-04B-14R	Blade	Tin	ANT APT	Brass	Free Hanging (In-Line)	1	Wire Leads	Holder	20 A	32 VDC
OptiFuse LPT-04B-16R	Blade	Tin	ANT APT	Brass	Free Hanging (In-Line)	1	Wire Leads	Holder	15 A	32 VDC
OptiFuse LPT-04B-12R	Blade	Tin	ANT APT	Brass	Free Hanging (In-Line)	1	Wire Leads	Holder	30 A	32 VDC
