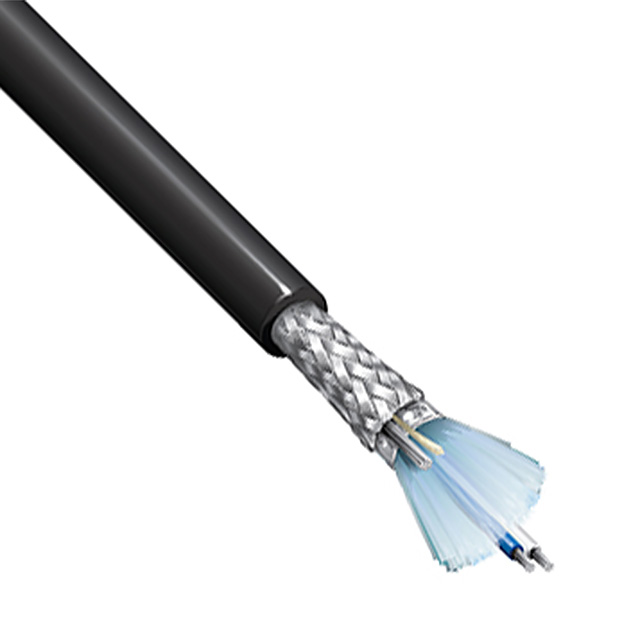

3105A 0101000

Active

Belden Inc.

CABLE 2COND 22AWG BLACK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG BLACK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	3105A 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Oil Resistant, UV Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	7.14 mm
Jacket (Insulation) Diameter [diameter]	0.281 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Insulation	Wire Gauge	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Shield Type	Jacket Color	Number of Conductors	Jacket (Insulation) Material	Shield Coverage	Shield Material	Conductor Material	Length	Length	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
Belden Inc. 3105A 0101000	Foam High Density Polyethylene (FHDPE)	22 AWG	Drain Wire Oil Resistant UV Resistant	7.14 mm	0.281 in	-20 C	60 °C	Multi-Conductor	Braid Foil	Black	2	Poly-Vinyl Chloride (PVC)	65 % 100 %	Aluminum Copper Tinned	Copper Tinned	1000 ft	304.8 m	300 V	7	30 AWG
Belden Inc. 3105A 010500	Foam High Density Polyethylene (FHDPE)	22 AWG	Drain Wire Oil Resistant UV Resistant	7.14 mm	0.281 in	-20 C	60 °C	Multi-Conductor	Braid Foil	Black	2	Poly-Vinyl Chloride (PVC)	65 % 100 %	Aluminum Copper Tinned	Copper Tinned		15.24 m		7	30 AWG	50 ft 500 '	152.4 m
